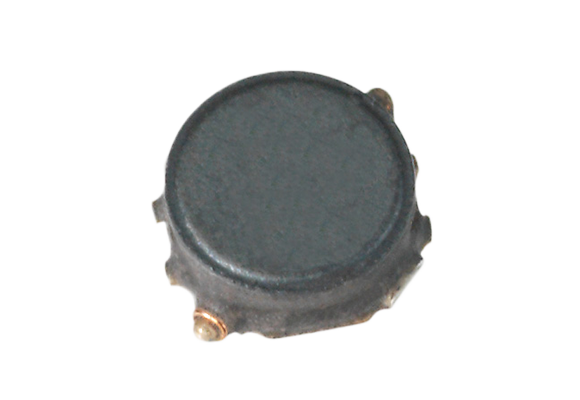

C3-P1.2R

RoHS AEC-Q200 Semi-Shielded structure

Compacts, low-height, and high current power inductor used in digital devices and mobile phones.
Several dimensions are available.

Features

1. Low DCR by magnetically shielded structure with magnetic resin.
2. Impact-resistant structure with wider terminals.
3. Non-Solder products by laser welding.

  • For DC-DC converter power supply of miniature portable devices (mobile phones, portable game equipment,
    DSC, DVC, etc.).

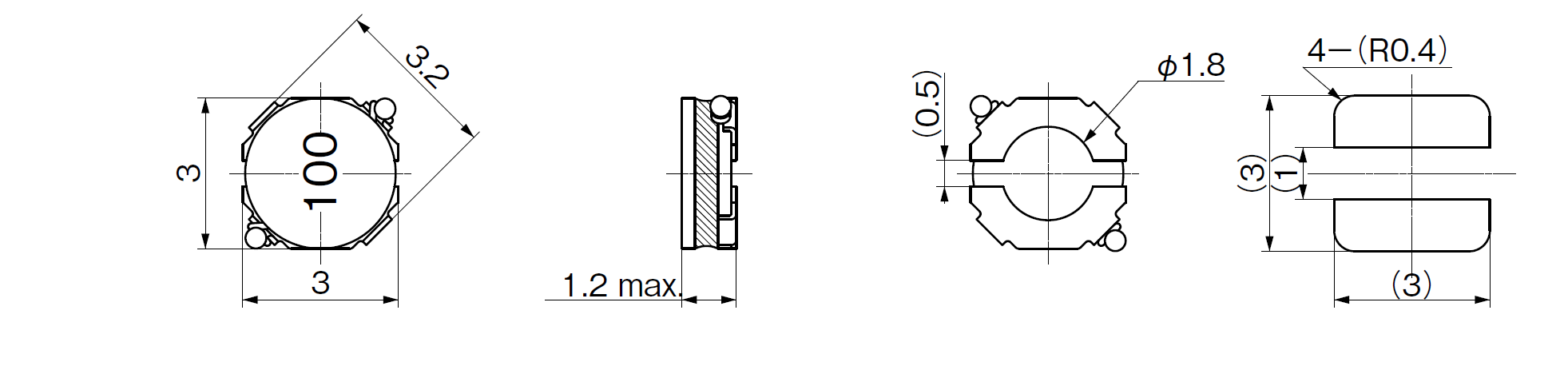

  • mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Size(W)
    [mm]

    Size(D)
    [mm]

    Length(H) Max
    [mm]

    Stamp

    Inductance
    [micro H]

    Inductance Tolerance
    lower limit
    [%]

    Inductance Tolerance
    upper limit
    [%]

    Inductance Test Freq.
    [KHz]

    DC Resistance
    [m OHM]

    Rated DC
    CurrentL=-30 percent
    [A]

    Rated DC Current
    deltaT=25K
    [A]
    3.0 3.0 1.2 1R2 1.20 -30 30 1 55.00 1.50 1.60
    3.0 3.0 1.2 1R5 1.50 -30 30 1 66.00 1.40 1.50
    3.0 3.0 1.2 1R8 1.80 -30 30 1 76.00 1.30 1.40
    3.0 3.0 1.2 2R7 2.70 -30 30 1 83.00 1.25 1.30
    3.0 3.0 1.2 3R3 3.30 -30 30 1 105.00 1.00 1.10
    3.0 3.0 1.2 3R9 3.90 -30 30 1 135.00 0.90 1.00
    3.0 3.0 1.2 4R7 4.70 -30 30 1 155.00 0.85 0.90
    3.0 3.0 1.2 5R6 5.60 -30 30 1 170.00 0.80 0.85
    3.0 3.0 1.2 6R8 6.80 -30 30 1 210.00 0.70 0.80
    3.0 3.0 1.2 8R2 8.20 -30 30 1 245.00 0.60 0.75
    3.0 3.0 1.2 100 10.00 -20 20 1 280.00 0.55 0.70
    3.0 3.0 1.2 120 12.00 -20 20 1 400.00 0.50 0.60
    3.0 3.0 1.2 150 15.00 -20 20 1 460.00 0.45 0.55
    3.0 3.0 1.2 180 18.00 -20 20 1 620.00 0.42 0.50
    3.0 3.0 1.2 220 22.00 -20 20 1 670.00 0.38 0.45
    3.0 3.0 1.2 270 27.00 -20 20 1 750.00 0.35 0.40
    3.0 3.0 1.2 330 33.00 -20 20 1 1050.00 0.31 0.35
    3.0 3.0 1.2 390 39.00 -20 20 1 1200.00 0.28 0.32
    3.0 3.0 1.2 470 47.00 -20 20 1 1300.00 0.26 0.30

  • scroll

    Q'ty
    [pcs./reel]

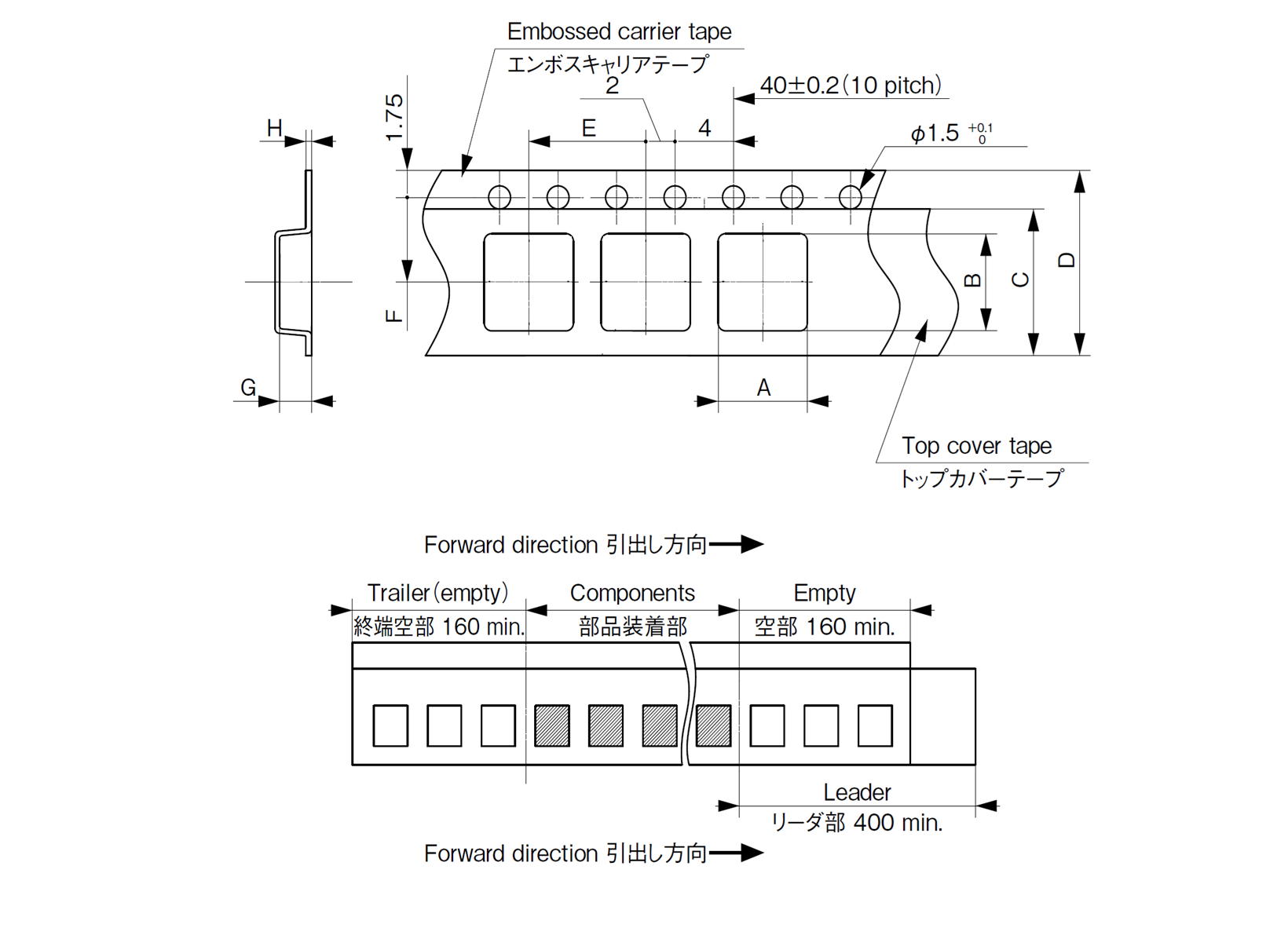

    Tape Dimensions A
    [mm]

    Tape Dimensions B
    [mm]

    Tape Dimensions C
    a
    [mm]

    Tape Dimensions C
    b
    [mm]

    Tape Dimensions D
    a
    [mm]

    Tape Dimensions D
    b
    [mm]

    Tape Dimensions E
    a
    [mm]

    Tape Dimensions E
    b
    [mm]

    Tape Dimensions F
    a
    [mm]

    Tape Dimensions F
    b
    [mm]

    Tape Dimensions G
    a
    [mm]

    Tape Dimensions G
    b
    [mm]

    Tape Dimensions H
    a
    [mm]

    Tape Dimensions H
    b
    [mm]

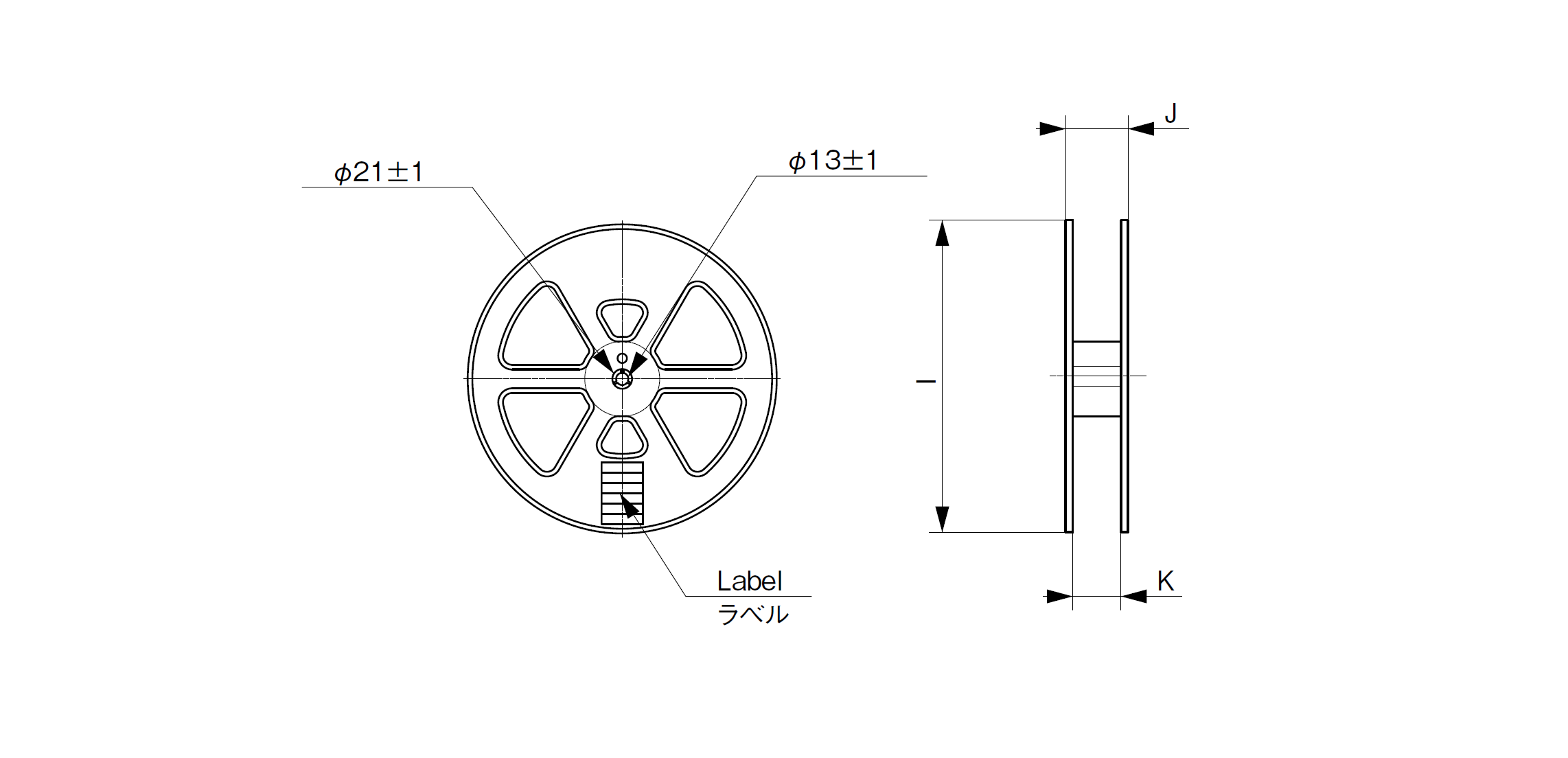

    Reel Dimensions I
    a
    [mm]

    Reel Dimensions I
    b
    [mm]

    Reel Dimensions J
    b
    [mm]

    Reel Dimensions K
    a
    [mm]

    Reel Dimensions K
    b
    [mm]
    5000 3.3 3.3 9.5 0.2 12 0.3 8 0.1 5.5 0.1 1.5 1.5 0.3 0.05 φ 330 φ 2 1 13.5 1
