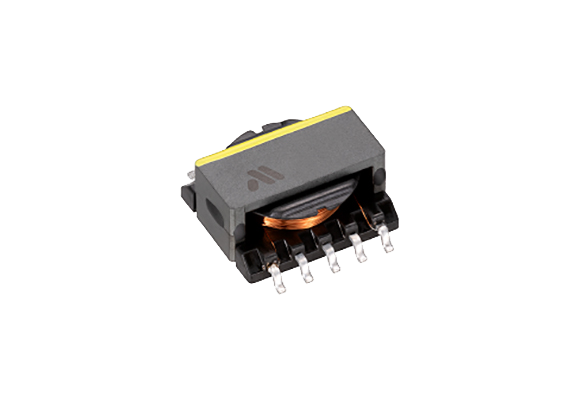

This transformer is used for DC/DC converters, switching power supplies, and IGBT isolation transformers.
Features
1,It is highly efficient and can cope with high power.
3,A closed magnetic circuit structure is adopted to reduce electromagnetic interference.
-
-
scroll
Operating Frequency
upper limit
[KHz]Power capacity
[W]500 5.0
-
scroll

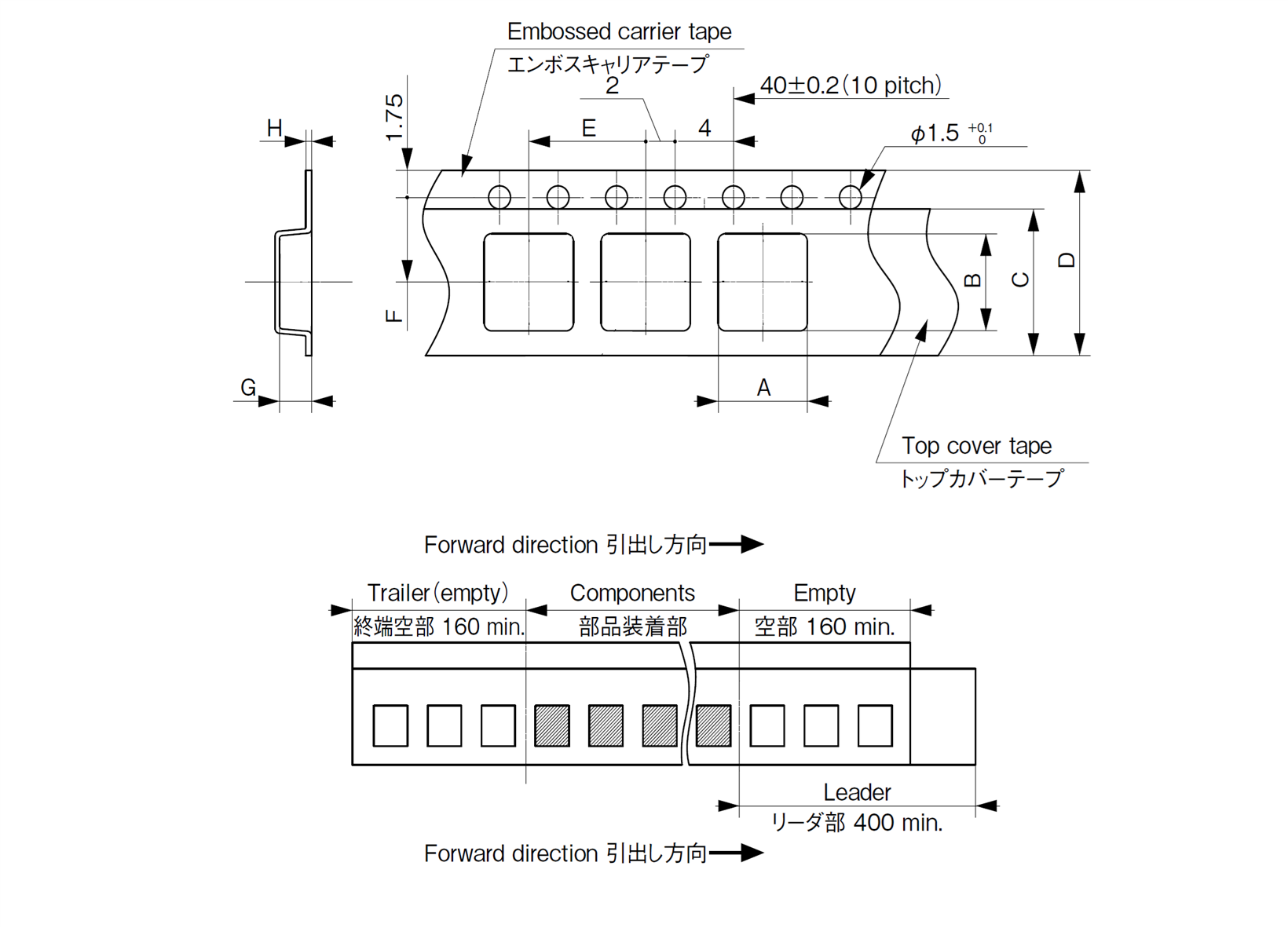

Q'ty
[pcs./reel]Tape Dimensions A
[mm]Tape Dimensions B
[mm]Tape Dimensions C
a
[mm]Tape Dimensions C
b
[mm]Tape Dimensions D
a
[mm]Tape Dimensions D
b
[mm]Tape Dimensions E
a
[mm]Tape Dimensions E
b
[mm]Tape Dimensions F
a
[mm]Tape Dimensions F
b
[mm]Tape Dimensions G
[mm]Tape Dimensions H
a
[mm]Tape Dimensions H
b

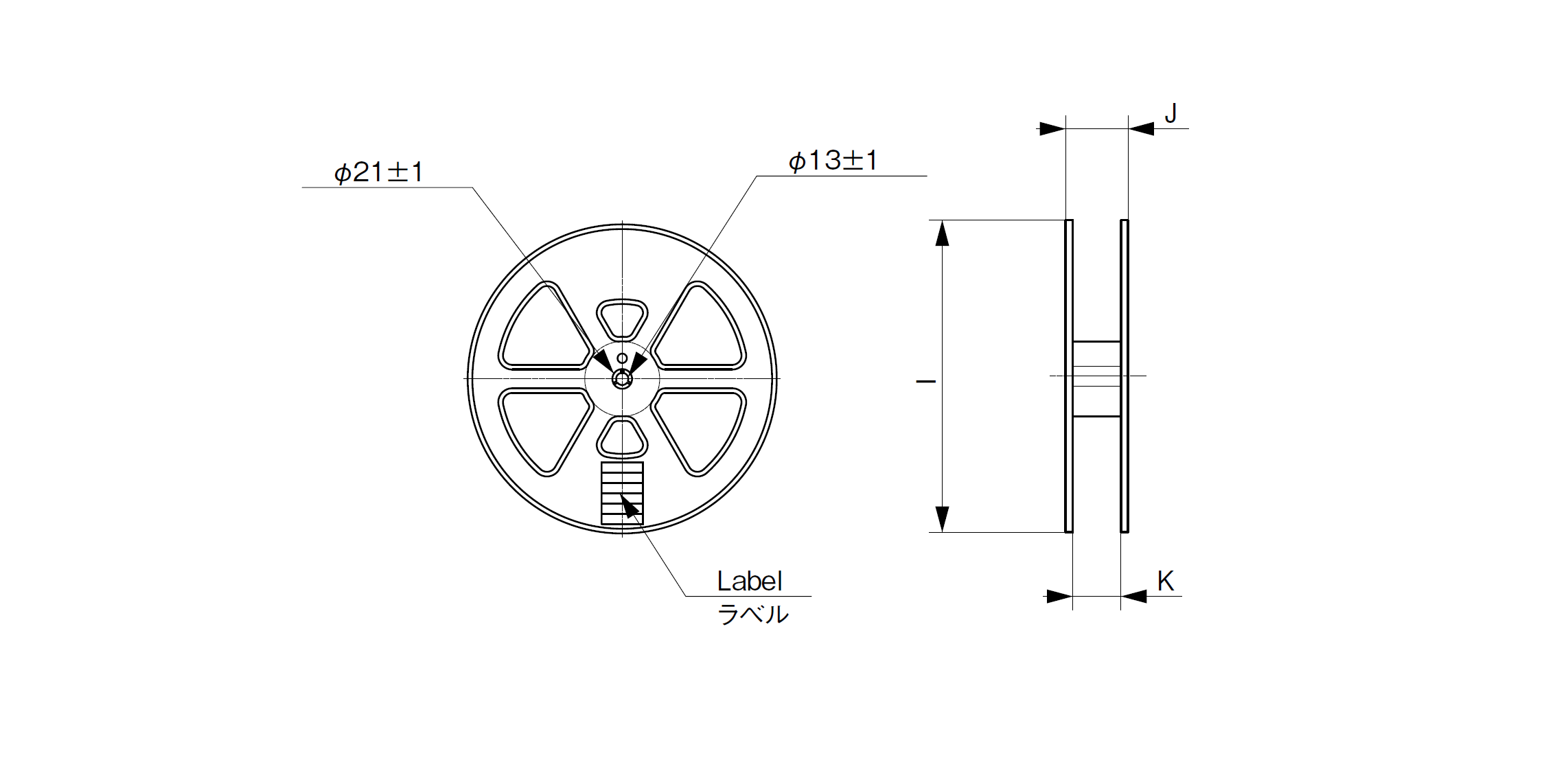

[mm]Reel Dimensions I
a
[mm]Reel Dimensions I
b
[mm]Reel Dimensions J
a
[mm]Reel Dimensions J
b
[mm]Reel Dimensions K
a
[mm]Reel Dimensions K
b
[mm]300 18.0 17.6 25.5 0.2 32 0.3 24 0.1 14.2 0.1 7.0 0.5 0.05 φ 330 φ 2 37.4 1 33.4 1
