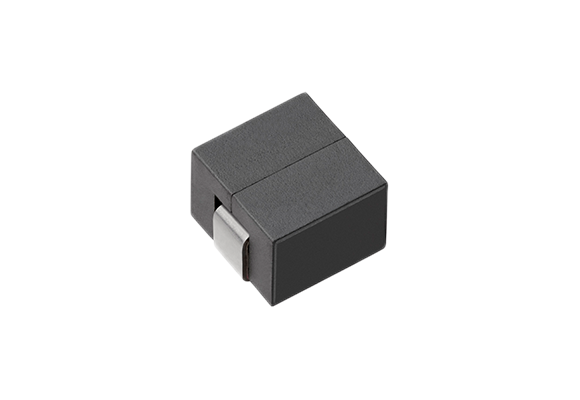

Heigh current inductor of DC/DC converter
Features
1. High saturation current noise filter
2. Produces low heat due to low DC resistance
3. Low Profile Product
-
-
For DC-DC converter power supply(ABS/ESP, Server).
-
mm -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll

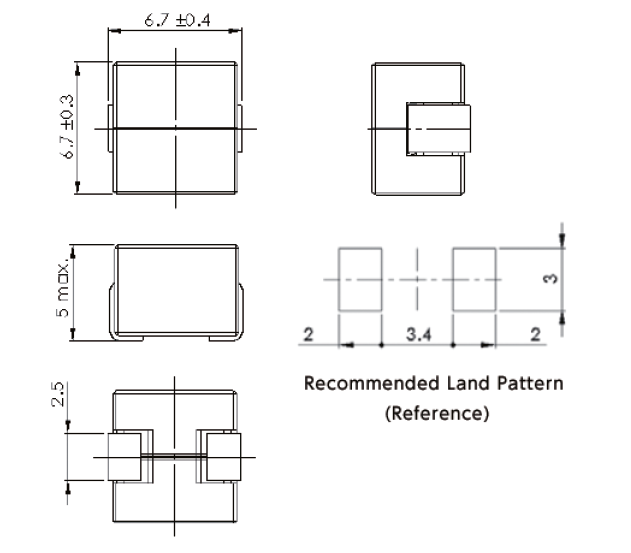

Size(W)
[mm]Size(D)
[mm]Length(H) Max
[mm]Stamp
Inductance
[micro H]Inductance Tolerance
lower limit
[%]Inductance Tolerance
upper limit
[%]Inductance Test Freq.
[KHz]DC Resistance
[m OHM]Rated DC
CurrentL=-20 percent
[A]Rated DC
Current deltaT=40K
[A]6.7 6.7 5.0 R15 0.15 -20 20 100 0.22 30.00 40.00 -
