3.5inch Back Light for PDA

Product Catalog

• Product Catalog[39KB]

Specifications

• LED : Nichia Kagaku NESW008B 4LEDs
• Prism sheet : T-Bef, BefⅡ

Test Conditions

• Forward current : If=20mA (each LED)
• Measurement point : Center of each position where effective area was divided into nine
• Measurement direction : Front (0)
• Environment : Windless in darkroom, Temperature 25, Humidity 42%

Characteristics

• Center luminance : 2,190cd/m² (typical)
• 9 point AVG luminance : 2,126cd/m² (typical)
• Uniformity : 93% (typical)

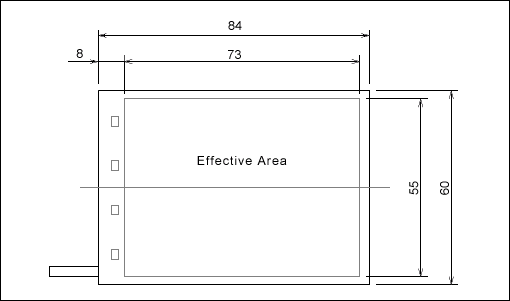

Dimensions
