Condition for package mounting
Condition for package mounting
* Pb-Free recommended profile conditions

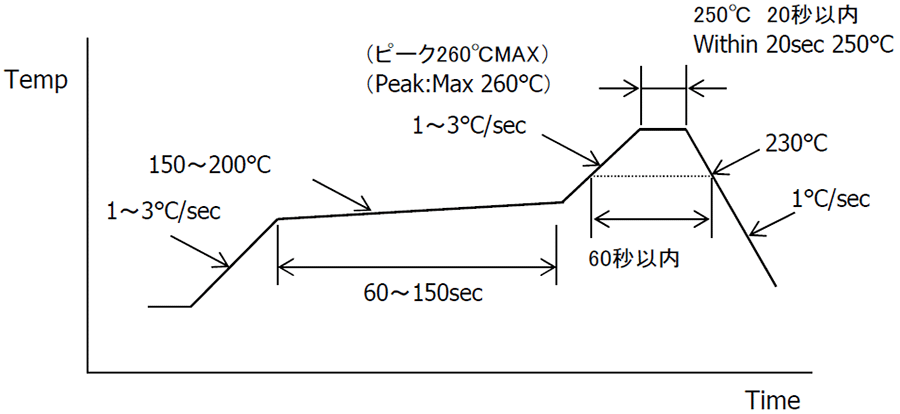

1. Reflow Soldering (max 2 times)

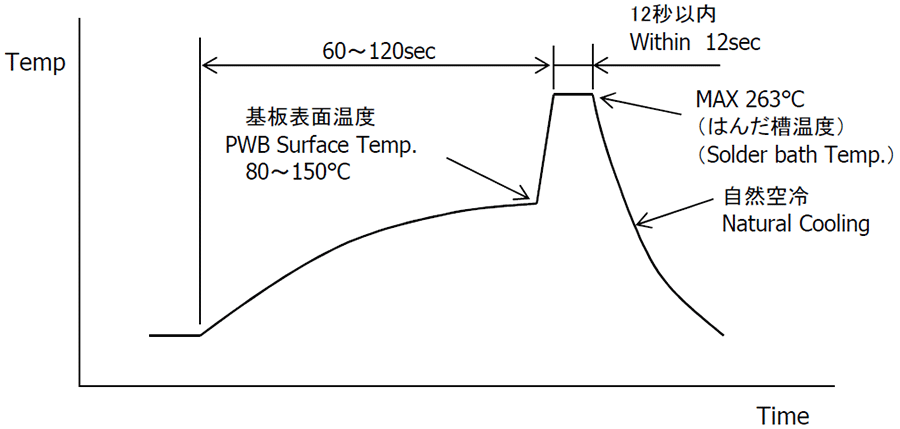

2. Flow Soldering (max 1 time)
Note: For double-wave soldering, the peak time is the total of two peaks (maximum temperature).
3. Manual Soldering
| Iron tip temp./time | max 400℃ / within 3s |
|---|---|
| times | max2 |
This profile gives recommended values, which are not guaranteed.
For mounting the package, evaluate the profile with the equipment, conditions, and materials to be used.
