The CA01 series is a 2.0mm pitch compact waterproof wire-to-wire and wire-to-board connector. Available in wire-to-wire (2, 3, 4, 5, 6, and 8 positions) and wire-to-board (2, 3, and 4 positions) types, it simultaneously achieves space-saving and waterproof connections inside devices.
【Features】
■ Provides IP67-compliant waterproof performance without additional waterproofing treatment, utilizing a structure that incorporates crimp terminals
■ Prevents assembly errors and improves workability through a low insertion/extraction force design and a latch lock system with a clear click feel
* IP67 rating is based on specified test conditions. Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

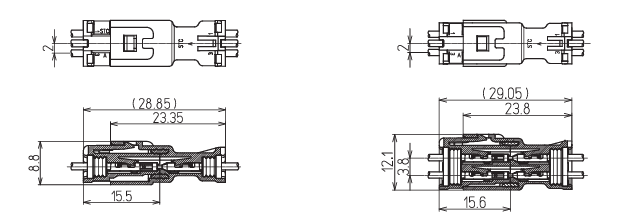

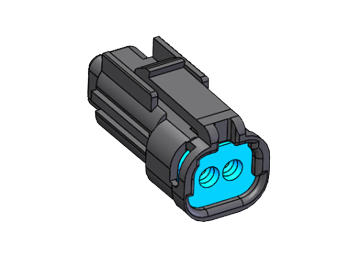

・This product is an in-line female housing for the CA01 series (terminals not included).
・Mates with male housing.
・In the part number, ""()()"" indicates the number of positions and ""*"" indicates the applicable cable O.D.
-
-
Parts No. CA01A6-()()B0-0＊ Pin Count 2,3,4,5,6,8
＊=3:2Pin OnlyPich
[mm]2.00 Waterproof Grade IP67 Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]2.00 Max Dielectric Withstanding
Voltage1,000V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]＊=1:Φ1.00～Φ1.25
＊=2:Φ1.25～Φ1.50
＊=3:Φ0.75～Φ1.00
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
