MinebeaMitsumi waterproof connectors cover a wide range of IP ratings to suit diverse operating environments. Ranging from drip-proof and splash-proof models for condensation to IPX9K-rated versions resistant to high-pressure washdowns, they support equipment design in harsh, wet environments.
The lineup meets diverse design needs with space-saving compact multi-pin models, high-current models for power circuits, and branching types that enhance wiring flexibility.
Key features include a structure that ensures waterproofing upon terminal insertion and a latch lock mechanism for clear mating feedback. This prevents assembly errors while improving workability and maintainability.
*Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Applications
Automotive component
ECU
Door mirror
Industrial equipment
Robot arm
Drone
Refrigerated display case
Consumer electronics
Housing equipment
E-bike
Automatic faucet
Washlet
Electronic lock
Medical Equipment
X-ray scanner
Product List
-

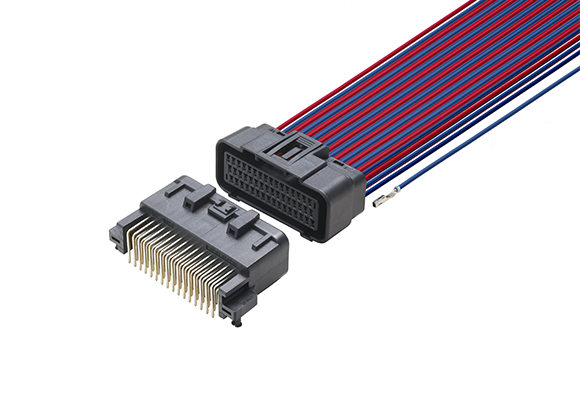

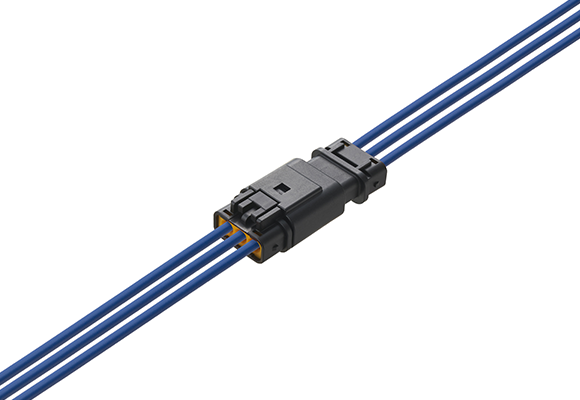

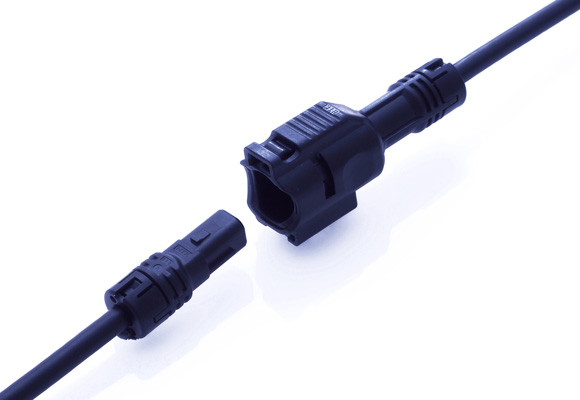

TAT Series | Automotive High-Speed Transmission Waterproof Connector
TAT series is a compact plug connector for in-vehicle wiring, with IPX9K waterproof performance
-

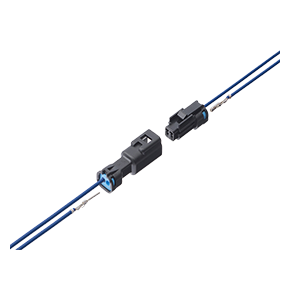

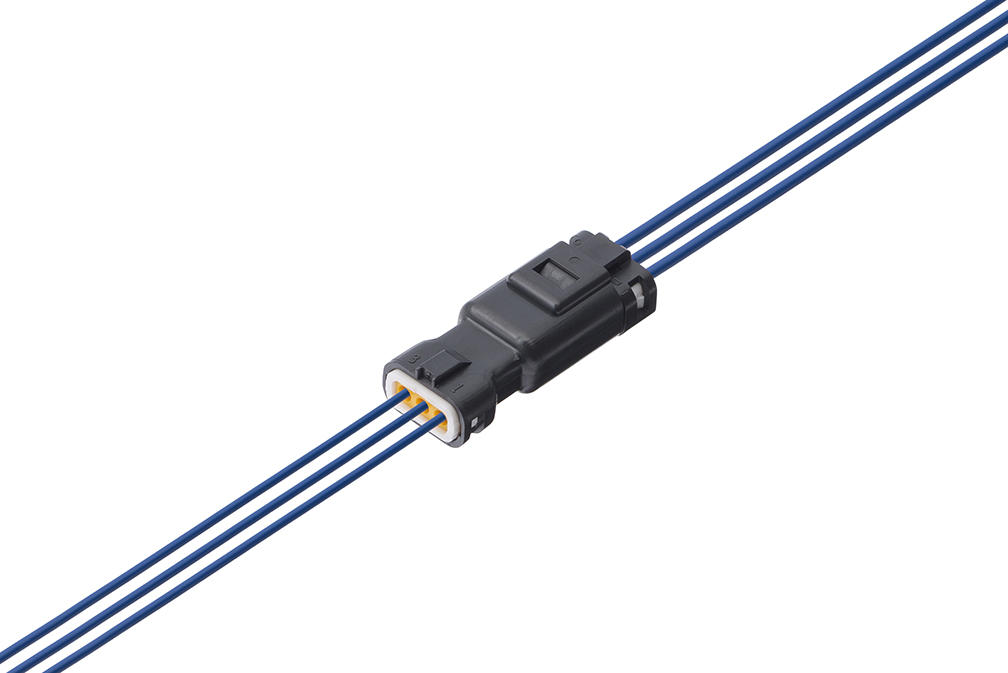

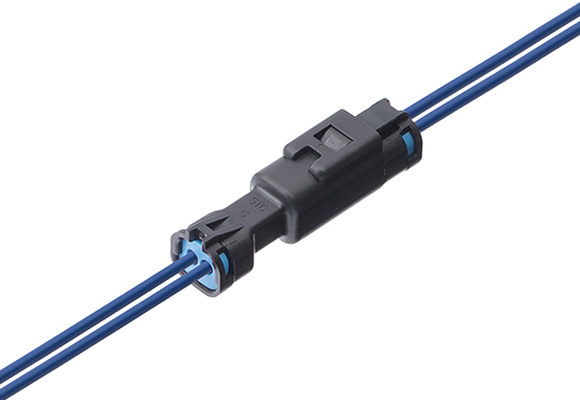

CA01 Series | 2.00mm Pitch Waterproof Connector
CA01 series is a compact 2.00mm pitch relay and board-to-wire waterproof connector.
-

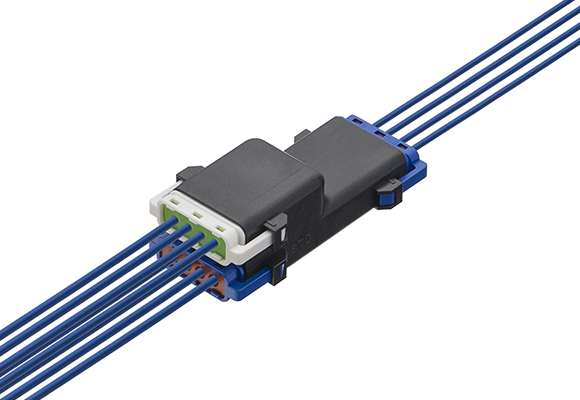

KB01 Series | Automotive Multipole 2.55mm Pitch Waterproof Connector
KB01 series is a 2.55mm pitch multi-pole waterproof in-vehicle connector, the smallest in its class.
-

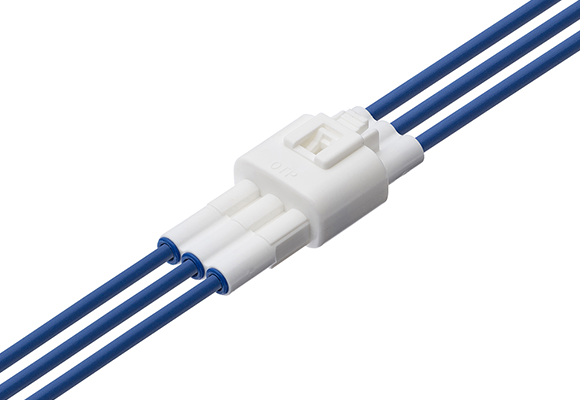

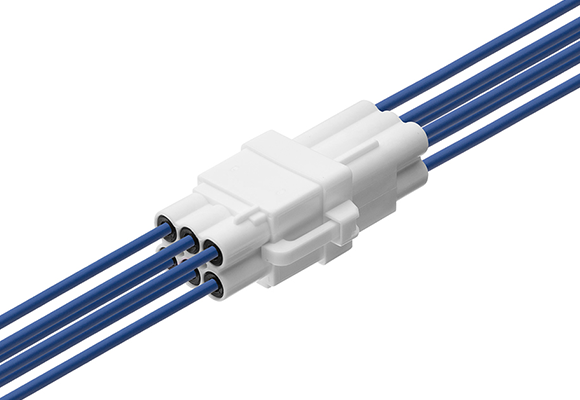

CB01 Series | 2.50mm Pitch Waterproof Connector
CB01 series is a compact 2.50mm pitch relay and board-to-wire waterproof connector.
-
CK01 Series | 4.40mm Pitch Waterproof IDC Branch Connector
CK01 series is a 4.40mm pitch waterproof insulation displacement connector for branching
-
CE01 Series | 4.50mm Pitch Waterproof Connector
CE01 series is a 4.5mm pitch waterproof relay connector compatible with 9A.
-

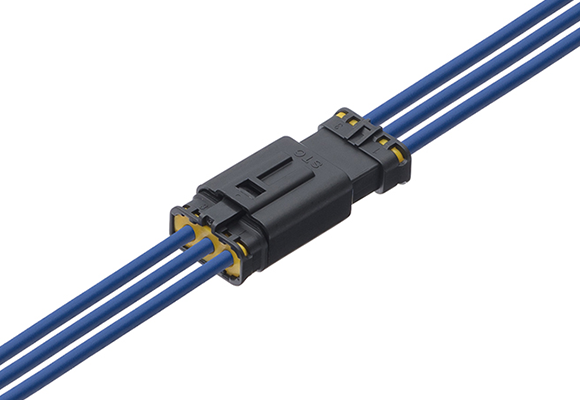

CJ01 Series | High Current 5.80mm Pitch Waterproof Connector
CJ01 series is a 5.8mm pitch waterproof relay connector compatible with 30A high current.
-
CL07A Series | 5.00mm Pitch Waterproof Connector
CL07A series is a rainproof 5.00mm pitch waterproof connector.
-

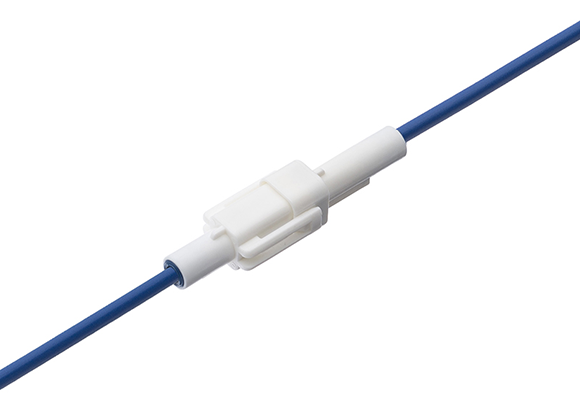

CL07C Series | Single-Pin Waterproof Connector
CL07C series is a splash-proof single-pole waterproof connector.
-
CL07D/E Series | 5.80mm Pitch Waterproof Connector
CL07D/E series is a 5.80mm pitch waterproof connector compatible with 10A.
Featured Products
Industry
FAQ
Which IP rating should be selected for high-pressure washing environments, IP67 or IPX9K?
For environments exposed to direct high-temperature, high-pressure water jets (automotive engine compartments, construction/agricultural machinery, food processing equipment, etc.), select IPX9K-compliant products (e.g., TAT series).
IP67 addresses temporary immersion (1 m depth in still water for 30 minutes), which uses different test criteria from IPX9K high-pressure spray protection. Using IPX9K-compliant products is recommended for high-pressure washdown applications.
Can IP67 waterproof connectors be used continuously underwater?
No, these products are not designed for continuous underwater immersion.
IP67 verifies protection only against temporary submersion (1 m depth in still water for 30 minutes). Do not use them in continuously submerged environments (equivalent to IPX8), as water ingress can cause short circuits or equipment failure.
While IP67 products suit applications with temporary submersion or splashing, outdoor exposure to direct sunlight (UV/heat) and weather requires separate weatherability evaluation for housings, outer resins, and seals. Please contact our representative for specific application suitability.
During cable assembly, a side tab on the housing retainer broke. Will this affect functionality?
Yes, never use damaged parts, as this may impair functionality.
Retainers are critical components that secure terminals in place. Using parts with damage like broken or deformed tabs can cause insufficient terminal retention, half-mating, or reduced waterproof performance.
Product performance and safety cannot be guaranteed if damaged parts are used. Please replace them with new components and assemble correctly.
If fewer wires are used than the connector's number of pins (leaving unused pins), how is waterproofing maintained?
Dedicated dummy plugs are available for unwired cavities.
To prevent water ingress, fully insert the correct series-specific dummy plug into any open cavity.
【Applicable Series】
CA01 Series、
CB01 Series、
CE01 Series、
CJ01 Series、
CL07A Series、
CL07C Series、
CL07D/E Series
Are UL-compliant wire seals available for waterproof connectors?
Yes, UL-compliant wire seals are available for the applicable series.
As part numbers and specifications differ from standard wire seals, please request a catalog or contact our sales representatives or contact form for details.
【Applicable Series】
CL07A Series、
CL07C Series、
CL07D/E Series
