CL07A Series | 5.00mm Pitch Waterproof Connector
The CL07A series is a 5.0 x 5.9mm pitch in-line drip-proof connector. Designed for environments prone to condensation and water droplets, it is intended for internal equipment wiring in applications such as refrigerated display cases and water heaters.
【Features】
■ Complies with JIS C 0920 (IPX3 equivalent), providing stable connectivity even in environments where frost and water droplets adhere or drip
■ Features a proven track record of adoption in refrigerated/freezer showcases and water heaters exposed to severe temperature and humidity changes
■ Allows major parts such as terminals, wire seals, and waterproof plugs to be shared across our CL07 series
* Complies with JIS C 0920 (IPX3). Not suitable for submersion or high-pressure water streams (IPX7, IPX9K, etc.). Drip-proof performance requires specified wires, dedicated tooling, and proper assembly.
CL07A Series | 5.00mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

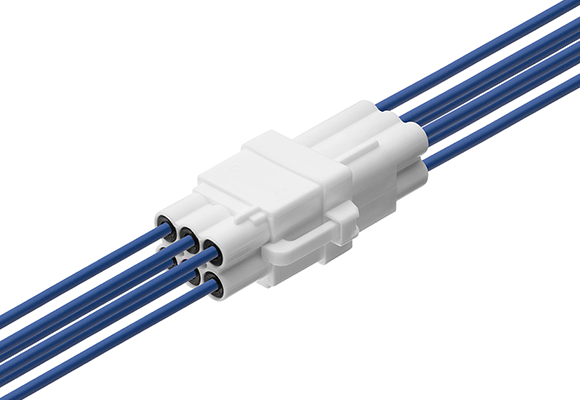

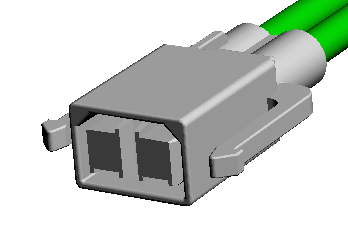

| CL07A0()F |  |
1,2,3,4,6,9 | 5.00×5.90 | IP67 | Crimping | 8.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0013_MCICL07A_BI_CL.pdf | ||
| CL07A0()M |  |
1,2,3,4,6,9 | 5.00×5.90 | IP67 | Crimping | 8.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0013_MCICL07A_BI_CL.pdf | ||

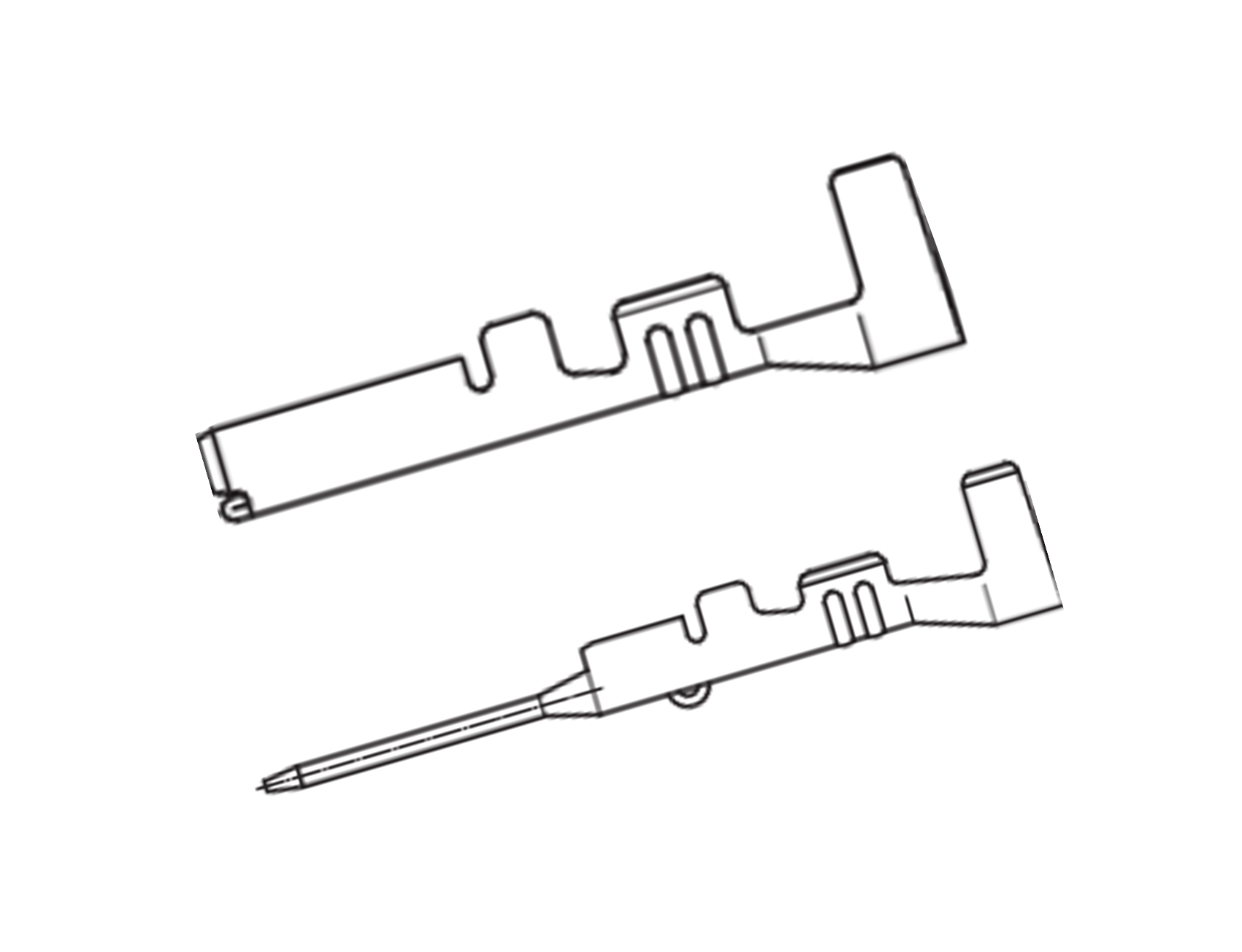

| CL07A Contact |  |
Crimping | -40 | 105 | Φ2.70MAX,Φ3.10MAX | AWG#22～16 | DL0013_MCICL07A_BI_CL.pdf | |||||

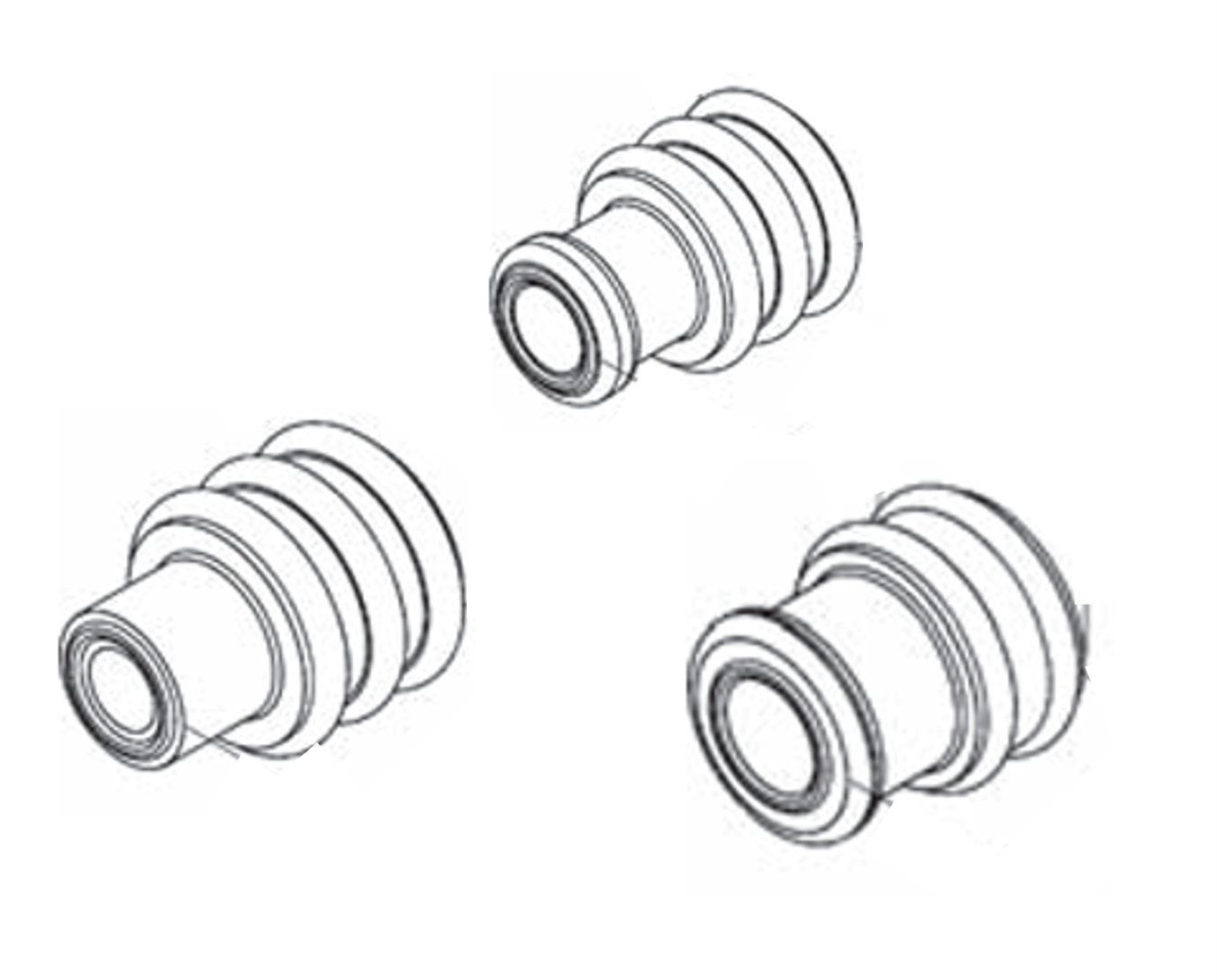

| CL07A Wireseal |  |
Wire Seal | -40 | 105 | Φ1.70～2.10 | DL0013_MCICL07A_BI_CL.pdf |
