TAT Series | Automotive High-Speed Transmission Waterproof Connector

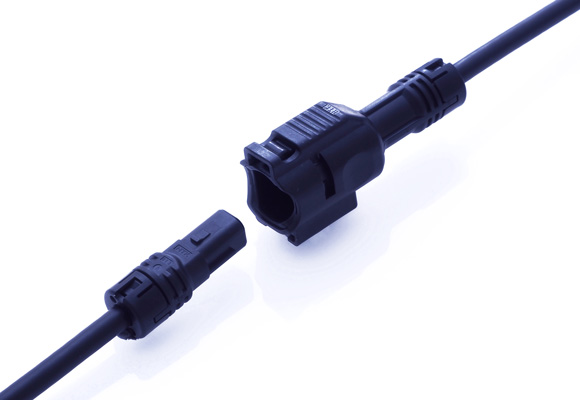

The TAT series is a compact waterproof wire-to-wire connector supporting high-speed transmission (LVDS/USB/Ethernet, etc.). Designed with in-vehicle wiring environments in mind, the plug connector is downsized and sold as a harness product with attached cables. Its excellent waterproof structure and secure mating mechanism ensure highly reliable wire-to-wire connections in harsh environments, including automotive applications.
【Features】
■ Ensures IPX9K-compliant waterproof performance by passing a test of spraying high-temperature, high-pressure water from 4 angles (0, 30, 60, and 90 degrees) for 30 seconds each
■ Compact design with a plug outer diameter of Φ11.2mm, allowing it to pass through standard Φ12mm vehicle holes
■ Employs a molded lock mechanism that prevents unintentional unlocking through a tactile click and lock sound during mating
■ Features a full shield structure with a metal shell, supporting stable high-speed data transmission while suppressing external noise
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
TAT Series | Automotive High-Speed Transmission Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

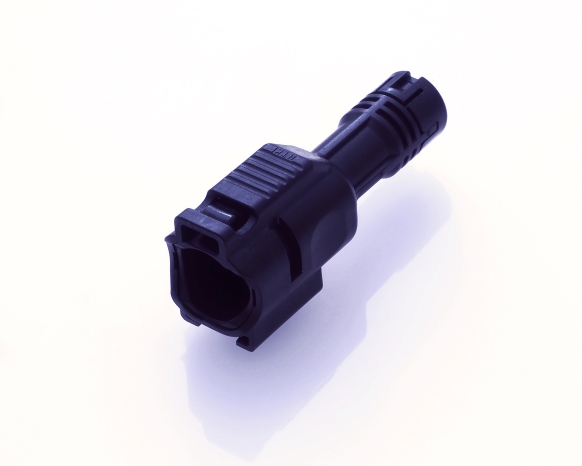

| TAT001A00AMF |  |
4 | 2.00 | IPX9K | Crimping | 2.5 | 500V A.C.(r.m.s) for a minute | -40 | 105 | AWG24 ~ 28 | DL0001_HTKTAT_BI.pdf | DL0003_HTKTAT_EN_CL.pdf |

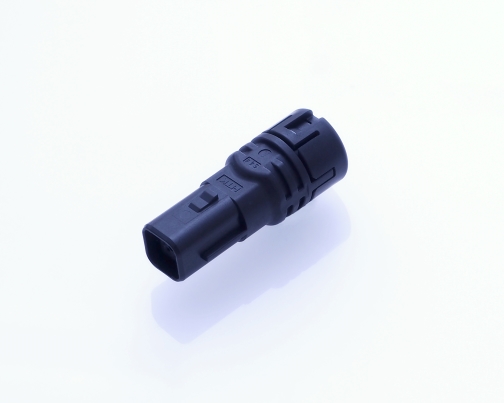

| TAT002A00AMM |  |
4 | 2.00 | IPX9K | Crimping | 2.5 | 500V A.C.(r.m.s) for a minute | -40 | 105 | AWG24 ~ 28 | DL0002_HTKTAT_BI.pdf | DL0003_HTKTAT_EN_CL.pdf |
