CA01 Series | 2.00mm Pitch Waterproof Connector

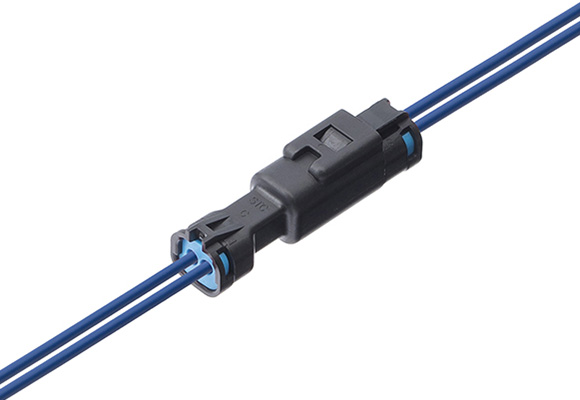

The CA01 series is a 2.0mm pitch compact waterproof wire-to-wire and wire-to-board connector. Available in wire-to-wire (2, 3, 4, 5, 6, and 8 positions) and wire-to-board (2, 3, and 4 positions) types, it simultaneously achieves space-saving and waterproof connections inside devices.
【Features】
■ Provides IP67-compliant waterproof performance without additional waterproofing treatment, utilizing a structure that incorporates crimp terminals
■ Prevents assembly errors and improves workability through a low insertion/extraction force design and a latch lock system with a clear click feel
* IP67 rating is based on specified test conditions. Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
CA01 Series | 2.00mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

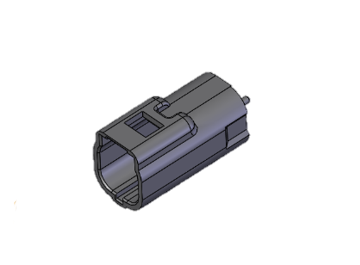

| CA01A6-()()B0-0＊ |  |
2,3,4,5,6,8 ＊=3:2Pin Only |
2.00 | IP67 | Crimping | 2.00 Max | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.25 ＊=2:Φ1.25～Φ1.50 ＊=3:Φ0.75～Φ1.00 |
DL0004_MCICA01_BI_CL.pdf |

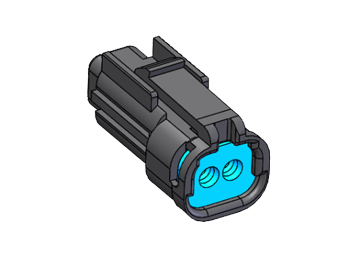

| CA01A5-()()B0-0＊ |  |
2,3,4,5,6,8 【＊=3】2Pin Only |
2.00 | IP67 | Crimping | 2.00 Max | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.25 ＊=2:Φ1.25～Φ1.50 ＊=3:Φ0.75～Φ1.00 |
DL0004_MCICA01_BI_CL.pdf |

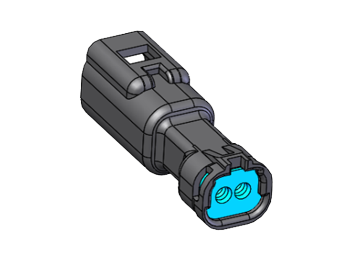

| CA01A1-()()BA |  |
2,3,4 | IP67 | DIP | 2.00 Max | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0004_MCICA01_BI_CL.pdf | ||
| CA01C＊-010A |  |
Crimping | -40 | 105 | Φ1.00～Φ1.50 | DL0004_MCICA01_BI_CL.pdf | |||||
| CA01C＊-020A |  |
Crimping | -40 | 105 | Φ0.75～1.20 | DL0004_MCICA01_BI_CL.pdf |
