The TAT series is a compact waterproof wire-to-wire connector supporting high-speed transmission (LVDS/USB/Ethernet, etc.). Designed with in-vehicle wiring environments in mind, the plug connector is downsized and sold as a harness product with attached cables. Its excellent waterproof structure and secure mating mechanism ensure highly reliable wire-to-wire connections in harsh environments, including automotive applications.
【Features】
■ Ensures IPX9K-compliant waterproof performance by passing a test of spraying high-temperature, high-pressure water from 4 angles (0, 30, 60, and 90 degrees) for 30 seconds each
■ Compact design with a plug outer diameter of Φ11.2mm, allowing it to pass through standard Φ12mm vehicle holes
■ Employs a molded lock mechanism that prevents unintentional unlocking through a tactile click and lock sound during mating
■ Features a full shield structure with a metal shell, supporting stable high-speed data transmission while suppressing external noise
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

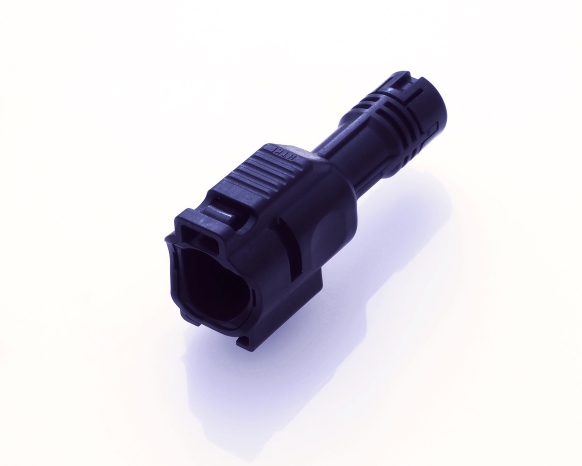

・This product is an in-line receptacle connector (4-pin) for the TAT series (terminals not included).
・Mates with model TAT001A00AMF.
-
-
Parts No. TAT002A00AMM Pin Count 4 Pich
[mm]2.00 Waterproof Grade IPX9K Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]2.5 Dielectric Withstanding
Voltage500V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Applicable Cable Diameter AWG24 ~ 28
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

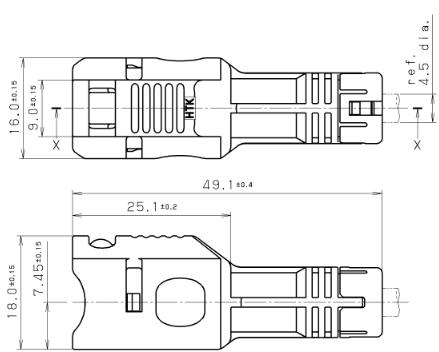

Please request the Engineering Drawing for the most current and accurate design information.
