The CL07A series is a 5.0 x 5.9mm pitch in-line drip-proof connector. Designed for environments prone to condensation and water droplets, it is intended for internal equipment wiring in applications such as refrigerated display cases and water heaters.
【Features】
■ Complies with JIS C 0920 (IPX3 equivalent), providing stable connectivity even in environments where frost and water droplets adhere or drip
■ Features a proven track record of adoption in refrigerated/freezer showcases and water heaters exposed to severe temperature and humidity changes
■ Allows major parts such as terminals, wire seals, and waterproof plugs to be shared across our CL07 series
* Complies with JIS C 0920 (IPX3). Not suitable for submersion or high-pressure water streams (IPX7, IPX9K, etc.). Drip-proof performance requires specified wires, dedicated tooling, and proper assembly.
Outline

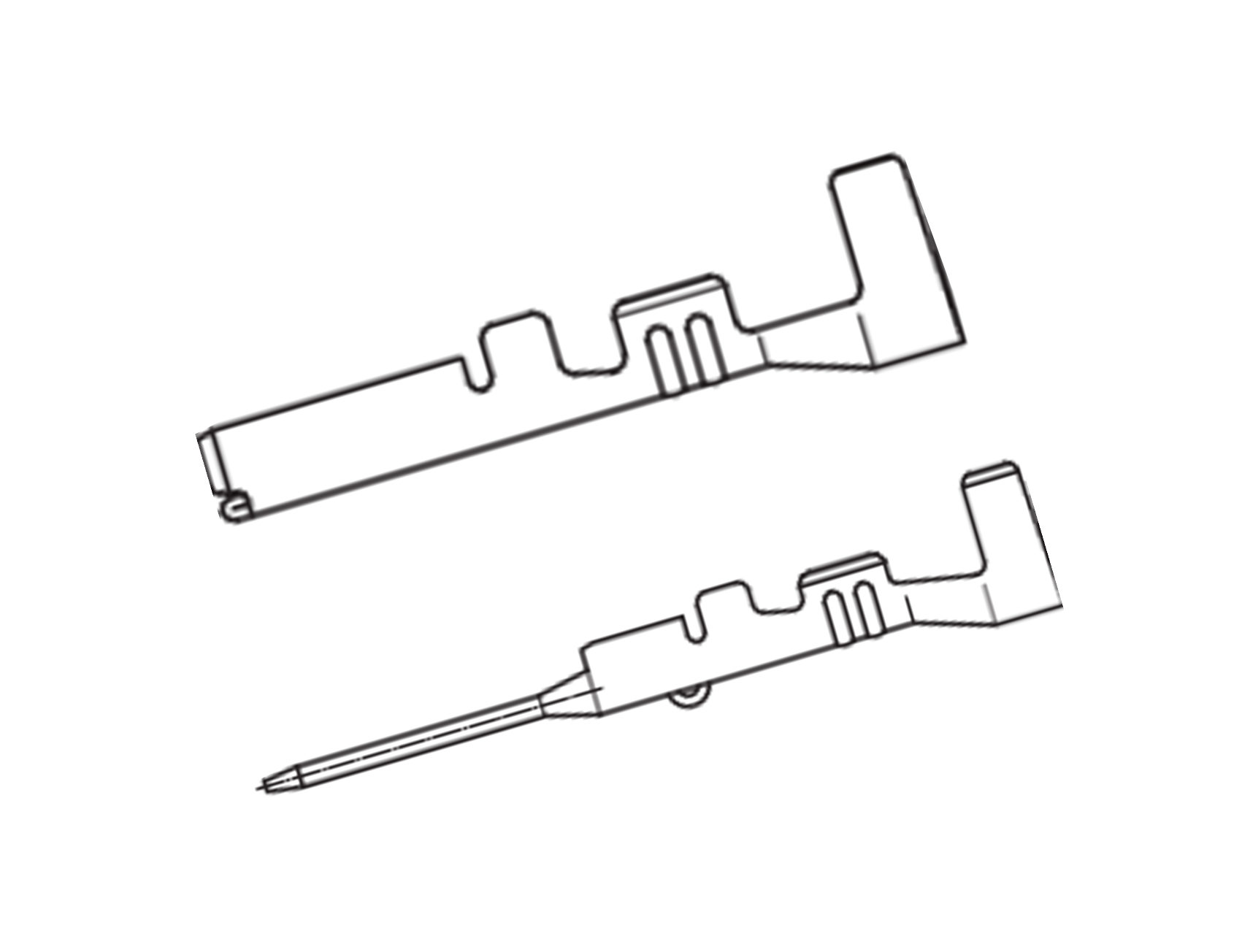

・This product is a terminal for the CL07A series.

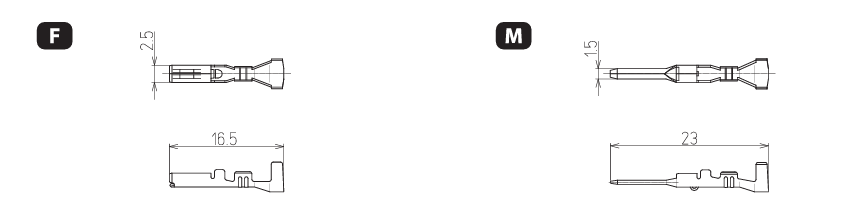

・Available in male and female terminals. Applicable wire range is 0.30 to 2.00 mm² (equivalent to AWG #22 to 14), and applicable cable O.D. is Φ3.10 max.
-
-
Parts No. CL07A Contact Mounting Method/
Wiring methodCrimping Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ2.70MAX,Φ3.10MAX Applicable Cable Diameter AWG#22～16
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Mounting Method/
Wiring methodOperating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
Catalog
215001-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0013_MCICL07A_BI_CL.pdf 215002-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0013_MCICL07A_BI_CL.pdf 215092-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0013_MCICL07A_BI_CL.pdf 215003-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0013_MCICL07A_BI_CL.pdf 215093-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0013_MCICL07A_BI_CL.pdf 215004-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0013_MCICL07A_BI_CL.pdf 215094-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0013_MCICL07A_BI_CL.pdf 215005-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0013_MCICL07A_BI_CL.pdf 215006-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0013_MCICL07A_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
