The CL07A series is a 5.0 x 5.9mm pitch in-line drip-proof connector. Designed for environments prone to condensation and water droplets, it is intended for internal equipment wiring in applications such as refrigerated display cases and water heaters.
【Features】
■ Complies with JIS C 0920 (IPX3 equivalent), providing stable connectivity even in environments where frost and water droplets adhere or drip
■ Features a proven track record of adoption in refrigerated/freezer showcases and water heaters exposed to severe temperature and humidity changes
■ Allows major parts such as terminals, wire seals, and waterproof plugs to be shared across our CL07 series
* Complies with JIS C 0920 (IPX3). Not suitable for submersion or high-pressure water streams (IPX7, IPX9K, etc.). Drip-proof performance requires specified wires, dedicated tooling, and proper assembly.
Outline

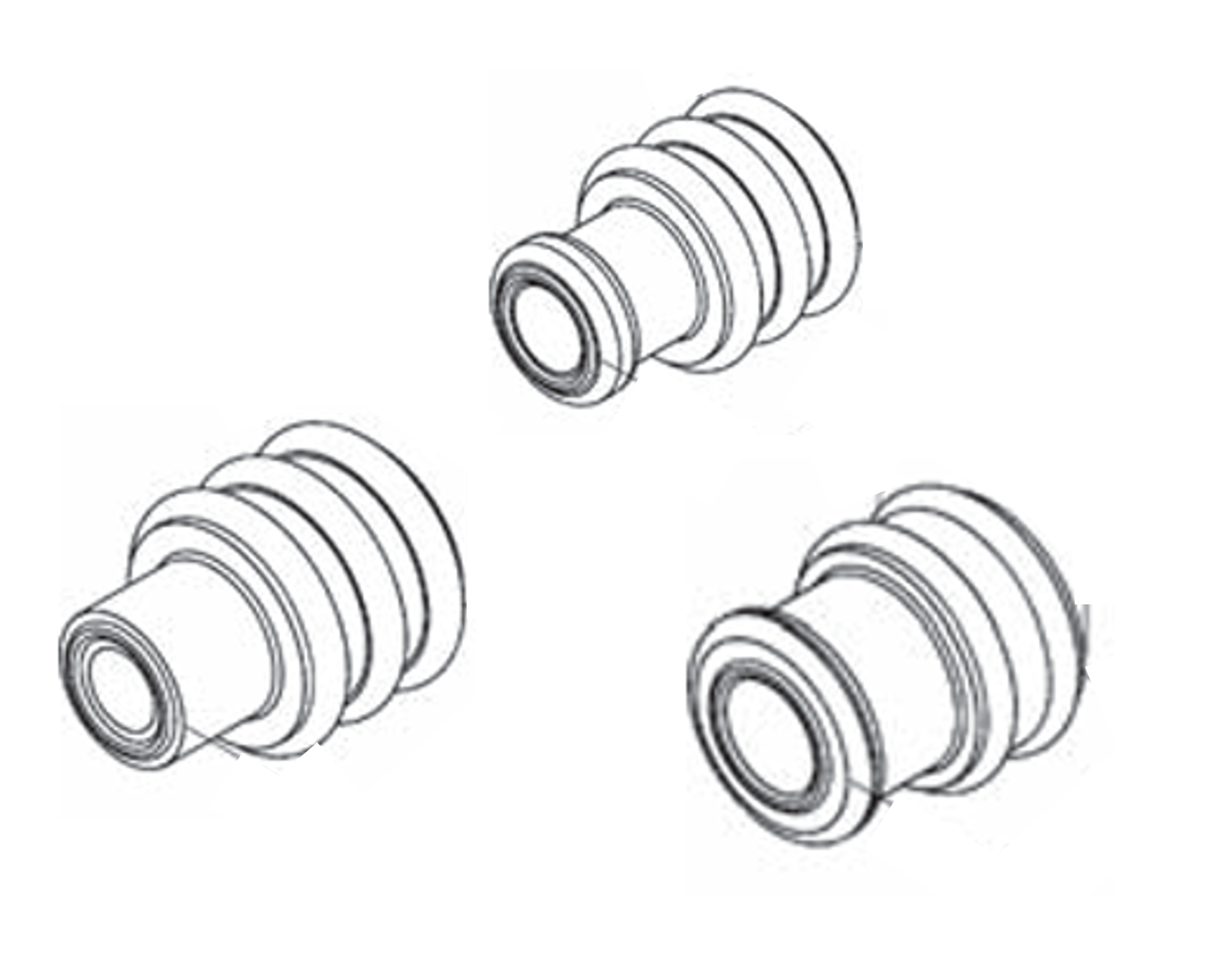

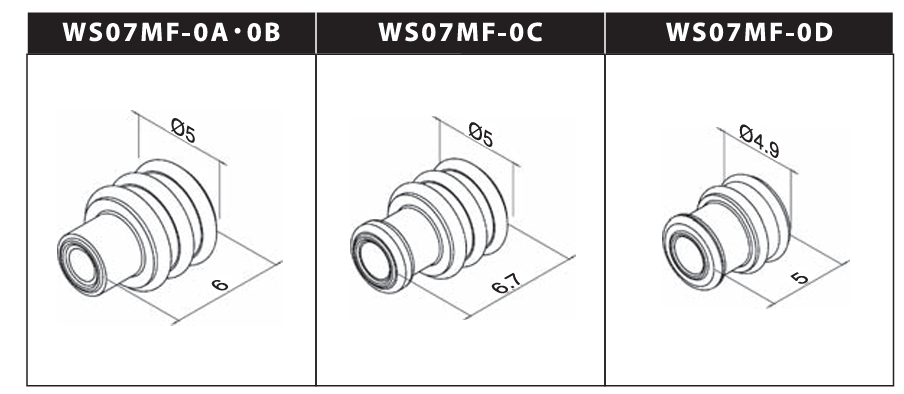

・This product is a wire seal for the CL07A series.
・Made of silicone rubber, it is available in four sizes depending on applicable cable O.D. (Φ1.70 to 3.10), color-coded by seal color (black, blue, reddish brown).
・UL-compliant wire seals are also available in addition to standard wire seals.
-
-
Parts No. CL07A Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog
WS07MF-0A -40 105 Φ1.70～2.10 DL0013_MCICL07A_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0013_MCICL07A_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0013_MCICL07A_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0013_MCICL07A_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
