CK01 Series | 4.40mm Pitch Waterproof IDC Branch Connector

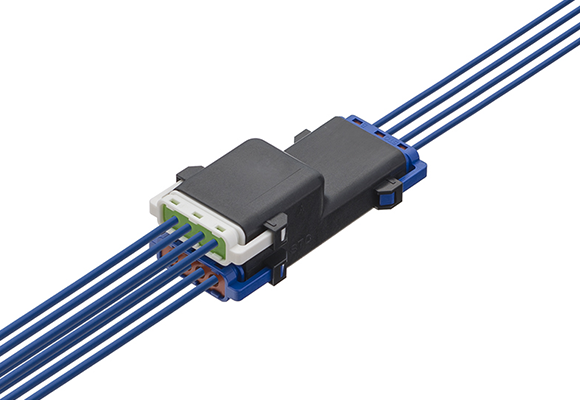

The CK01 series is a 4.4mm pitch, 4-position waterproof wire-to-wire connector. Employing an insulation displacement contact (IDC) structure, it enables 3-way branching of signal and power circuits. It enhances wiring flexibility and simultaneously achieves space-saving and waterproof connections for internal and inter-device wiring.
【Features】
■ Enables efficient waterproof connections by eliminating wire stripping tasks through the adoption of the IDC method
■ Contributes to improved wiring layout flexibility and space-saving with a structure capable of 3-way circuit branching
■ Supports use in environments with moisture or water presence by providing a waterproof wire-to-wire connection
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
CK01 Series | 4.40mm Pitch Waterproof IDC Branch Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Catalog |

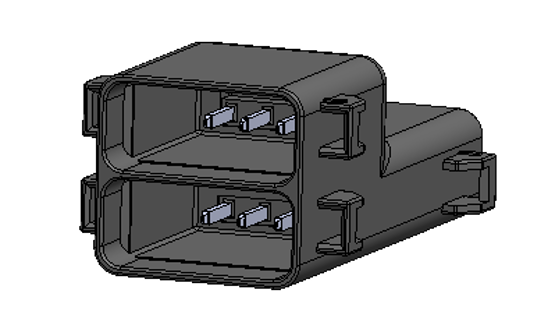

|---|---|---|---|---|---|---|---|---|---|---|---|
| CK01A6-04*A |  |
4 | 4.40 | IP67 | IDC | 0.3sq:6.00 MAX 1.25sq:9.00 MAX |
1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=N:Small Size Φ1.30～1.60 | DL0008_MCICK01_BI_CL.pdf |
| CK01Y5-04BA |  |
4 | 4.40 | IP67 | IDC | 0.3sq:6.00 MAX 1.25sq:9.00 MAX |
1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=A:Large Size Φ2.10～2.70 | DL0008_MCICK01_BI_CL.pdf |
