The CK01 series is a 4.4mm pitch, 4-position waterproof wire-to-wire connector. Employing an insulation displacement contact (IDC) structure, it enables 3-way branching of signal and power circuits. It enhances wiring flexibility and simultaneously achieves space-saving and waterproof connections for internal and inter-device wiring.
【Features】
■ Enables efficient waterproof connections by eliminating wire stripping tasks through the adoption of the IDC method
■ Contributes to improved wiring layout flexibility and space-saving with a structure capable of 3-way circuit branching
■ Supports use in environments with moisture or water presence by providing a waterproof wire-to-wire connection
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

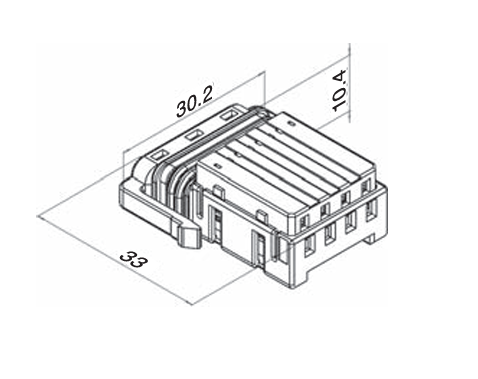

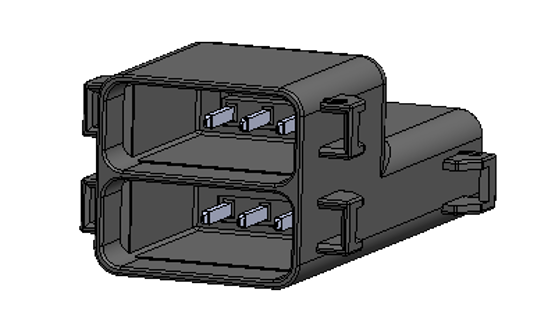

・This product is a female housing for the CK01 series.
・Mates with in-line male housing.
-
-
Parts No. CK01A6-04*A Pin Count 4 Pich
[mm]4.40 Waterproof Grade IP67 Mounting Method/
Wiring methodIDC Current Rating
[A/Pin]0.3sq:6.00 MAX
1.25sq:9.00 MAXDielectric Withstanding
Voltage1,000V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]＊=N:Small Size Φ1.30～1.60
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
