CL07D/E Series | 5.80mm Pitch Waterproof Connector

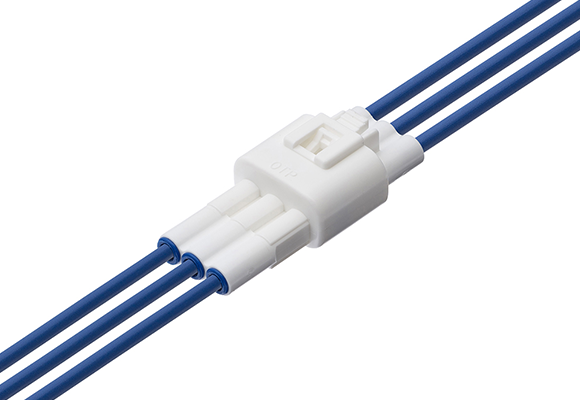

The CL07D/E series are 5.8mm pitch waterproof connectors. The lineup includes the CL07D series for in-line connections and the CL07E series for board-to-wire connections, supporting high currents up to 10A.
【Features】
■ Complies with JIS C 0920 (Protection Grade IP67 equivalent), preventing dust ingress and providing waterproof performance during temporary submersion
■ Offers both wire-to-wire (CL07D) and wire-to-board (CL07E) options within the same series, allowing selection of the optimal connection method
■ Accommodates various wire insulation outer diameters and sizes by changing the wire seal
■ Offers 2-Pin and 3-Pin Lineup
* Rated current (up to 10 A) is a reference value based on specified applicable wires and test conditions. Actual allowable current varies by wire size, ambient environment, and operating conditions.
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
CL07D/E Series | 5.80mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

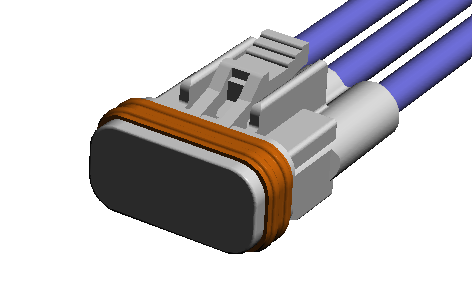

| CL07D0()A |  |
2,3 | 5.80 | IP67 | Crimping | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

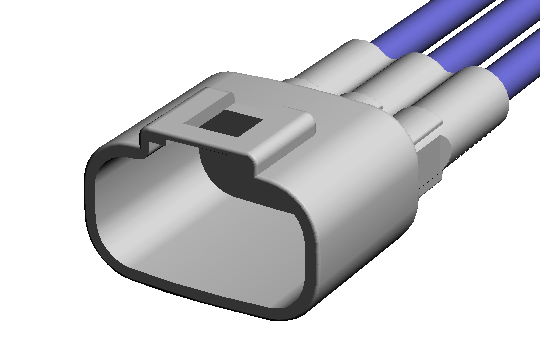

| CL07D0()M |  |
2,3 | 5.80 | IP67 | Crimping | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

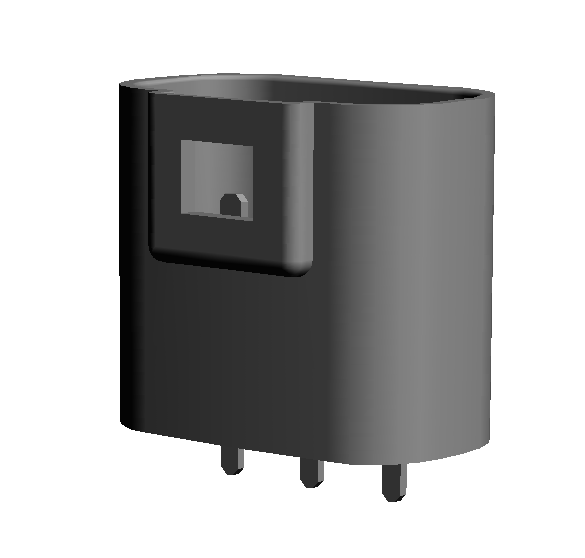

| CL07E0()M |  |
2,3 | 5.80 | IP67 | DIP | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

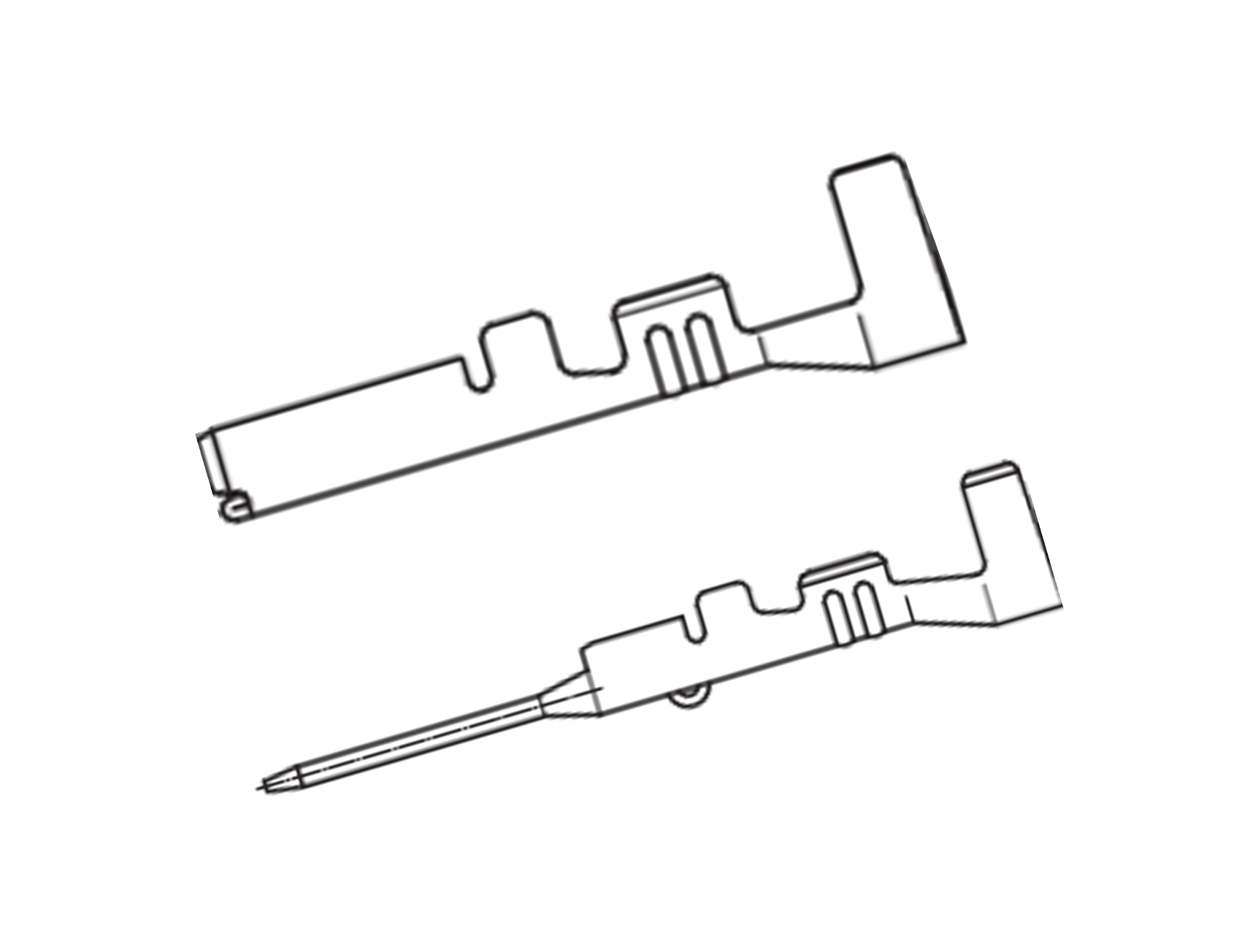

| CL07DE Contact |  |
Crimping | -40 | 105 | Φ2.70MAX,Φ3.10MAX | AWG#22～16 | DL0013_MCICL07A_BI_CL.pdf | |||||

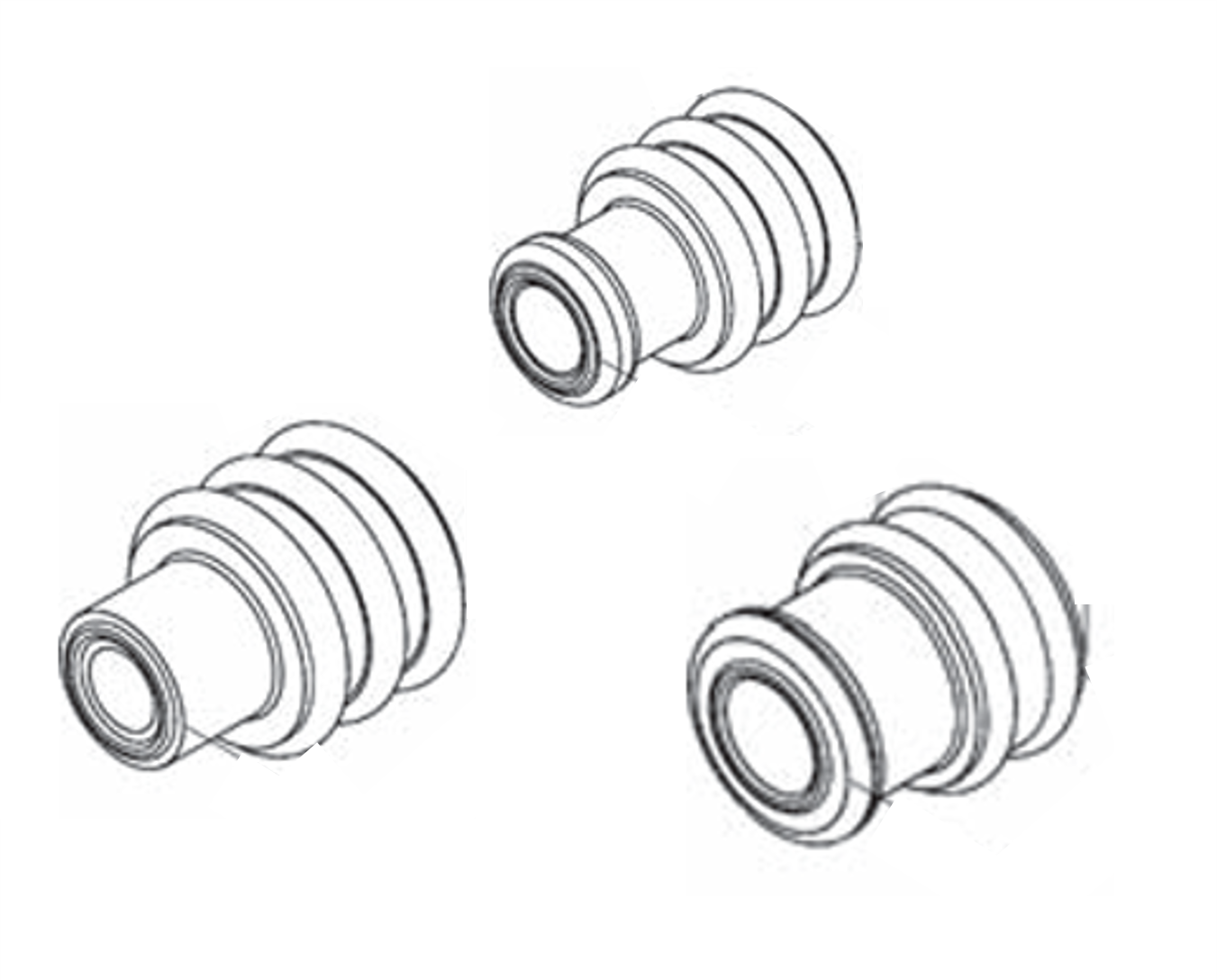

| CL07DE Wireseal |  |
Wire Seal | -40 | 105 | Φ1.70～2.10 | DL0013_MCICL07A_BI_CL.pdf |
