The CL07D/E series are 5.8mm pitch waterproof connectors. The lineup includes the CL07D series for in-line connections and the CL07E series for board-to-wire connections, supporting high currents up to 10A.
【Features】
■ Complies with JIS C 0920 (Protection Grade IP67 equivalent), preventing dust ingress and providing waterproof performance during temporary submersion
■ Offers both wire-to-wire (CL07D) and wire-to-board (CL07E) options within the same series, allowing selection of the optimal connection method
■ Accommodates various wire insulation outer diameters and sizes by changing the wire seal
■ Offers 2-Pin and 3-Pin Lineup
* Rated current (up to 10 A) is a reference value based on specified applicable wires and test conditions. Actual allowable current varies by wire size, ambient environment, and operating conditions.
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

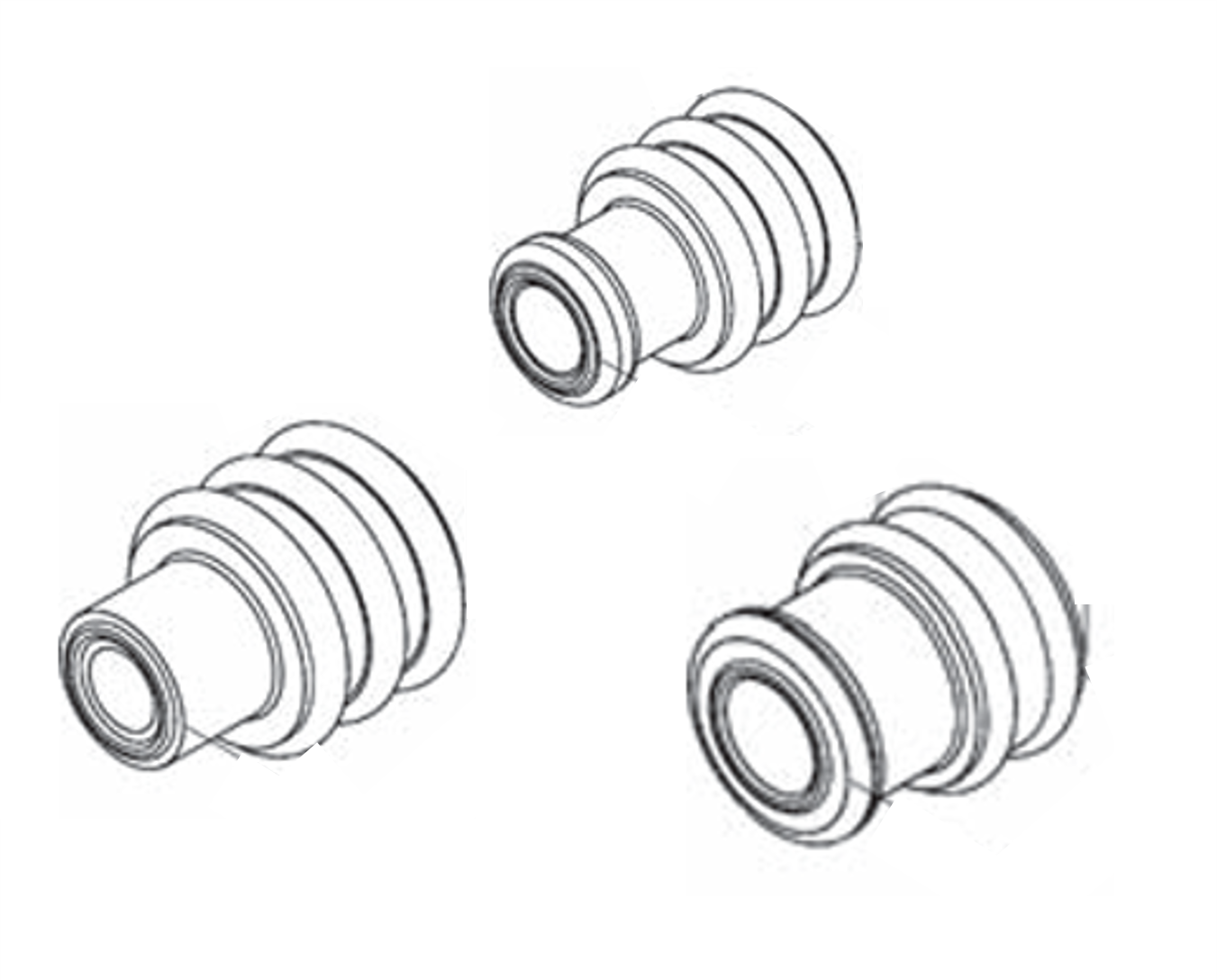

・This product is a wire seal for the CL07D/E series.
・Made of silicone rubber, it is available in four sizes depending on applicable cable O.D. (Φ1.70 to 3.10), color-coded by seal color (black, blue, reddish brown).
・UL-compliant wire seals are also available in addition to standard wire seals.
-
-
Parts No. CL07DE Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog

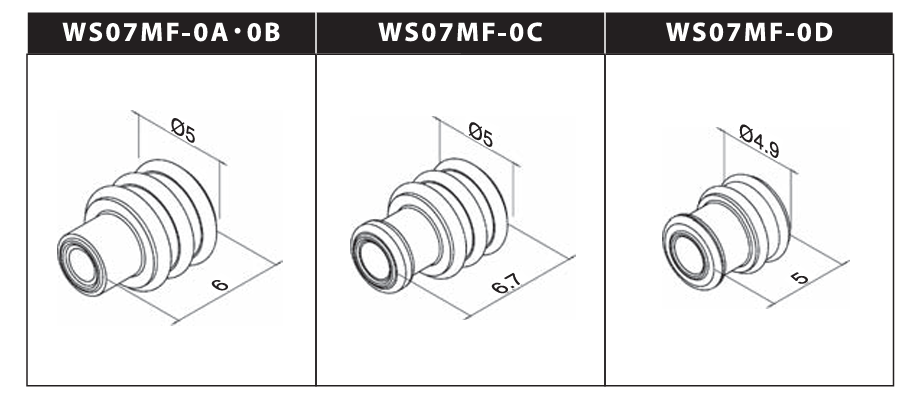

WS07MF-0A -40 105 Φ1.70～2.10 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0015_MCICL07DE_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
