The CL07D/E series are 5.8mm pitch waterproof connectors. The lineup includes the CL07D series for in-line connections and the CL07E series for board-to-wire connections, supporting high currents up to 10A.
【Features】
■ Complies with JIS C 0920 (Protection Grade IP67 equivalent), preventing dust ingress and providing waterproof performance during temporary submersion
■ Offers both wire-to-wire (CL07D) and wire-to-board (CL07E) options within the same series, allowing selection of the optimal connection method
■ Accommodates various wire insulation outer diameters and sizes by changing the wire seal
■ Offers 2-Pin and 3-Pin Lineup
* Rated current (up to 10 A) is a reference value based on specified applicable wires and test conditions. Actual allowable current varies by wire size, ambient environment, and operating conditions.
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).

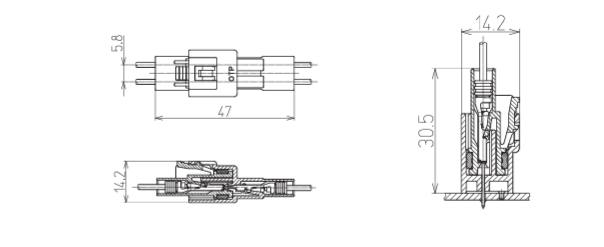

Outline

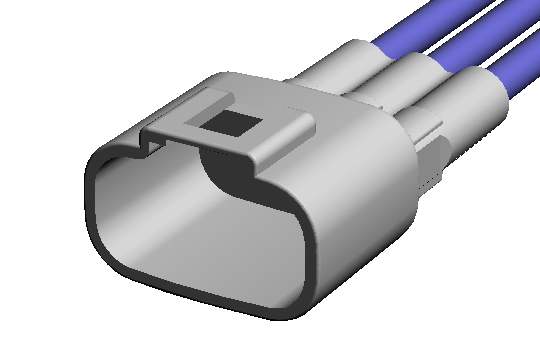

・This product is an in-line male housing for the CL07D series (terminals not included).
・Mates with female housing.
・In the part number, ""()"" indicates the number of pins.
-
-
Parts No. CL07D0()M Pin Count 2,3 Pich
[mm]5.80 Waterproof Grade IP67 Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]10.00 MAX Dielectric Withstanding
Voltage1,700V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
