The CL07D/E series are 5.8mm pitch waterproof connectors. The lineup includes the CL07D series for in-line connections and the CL07E series for board-to-wire connections, supporting high currents up to 10A.
【Features】
■ Complies with JIS C 0920 (Protection Grade IP67 equivalent), preventing dust ingress and providing waterproof performance during temporary submersion
■ Offers both wire-to-wire (CL07D) and wire-to-board (CL07E) options within the same series, allowing selection of the optimal connection method
■ Accommodates various wire insulation outer diameters and sizes by changing the wire seal
■ Offers 2-Pin and 3-Pin Lineup
* Rated current (up to 10 A) is a reference value based on specified applicable wires and test conditions. Actual allowable current varies by wire size, ambient environment, and operating conditions.
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

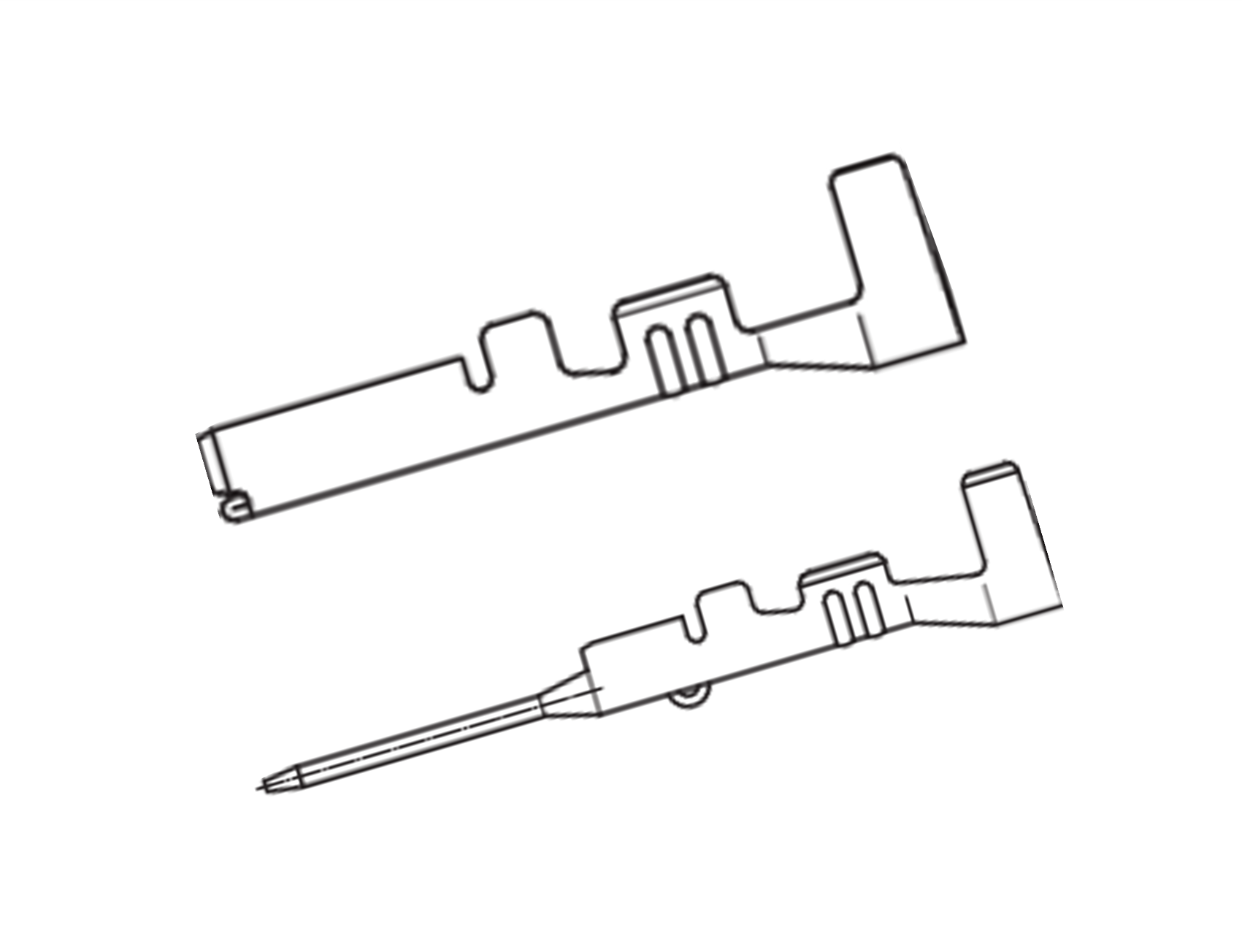

・This product is a terminal for the CL07D/E series.

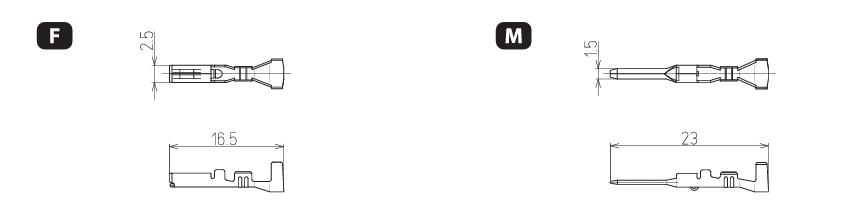

・Available in male and female terminals. Applicable wire range is 0.30 to 2.00 mm² (equivalent to AWG #22 to 14), and applicable cable O.D. is Φ3.10 max.
-
-
Parts No. CL07DE Contact Mounting Method/
Wiring methodCrimping Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ2.70MAX,Φ3.10MAX Applicable Cable Diameter AWG#22～16
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Mounting Method/
Wiring methodOperating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
Catalog
215001-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215002-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215092-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215003-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215093-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215004-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215094-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215005-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0015_MCICL07DE_BI_CL.pdf 215006-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0015_MCICL07DE_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
