CE01 Series | 4.50mm Pitch Waterproof Connector

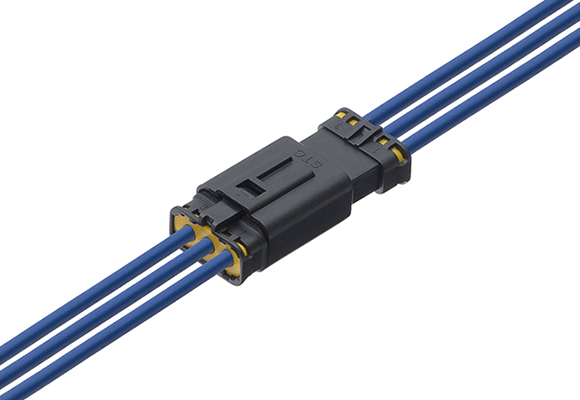

The CE01 series is a 4.5mm pitch waterproof wire-to-wire connector. Alongside the standard wire-to-wire type (2 and 3 positions), the lineup includes a branch type (2 positions) and a panel-mount type (3 positions). It provides wiring and connection solutions tailored to diverse device specifications and applications.
【Features】
■ Achieves a maximum rated current of 9A (*depending on applied wires/conditions) in a space-saving design by adopting high-conductivity materials for the terminals
■ Delivers high IP67-equivalent waterproof performance via a simple structure where crimp terminals are inserted into the housing
■ Improves assembly workability and reduces insertion/extraction force through a structure incorporating a latch lock and housing seal
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
CE01 Series | 4.50mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

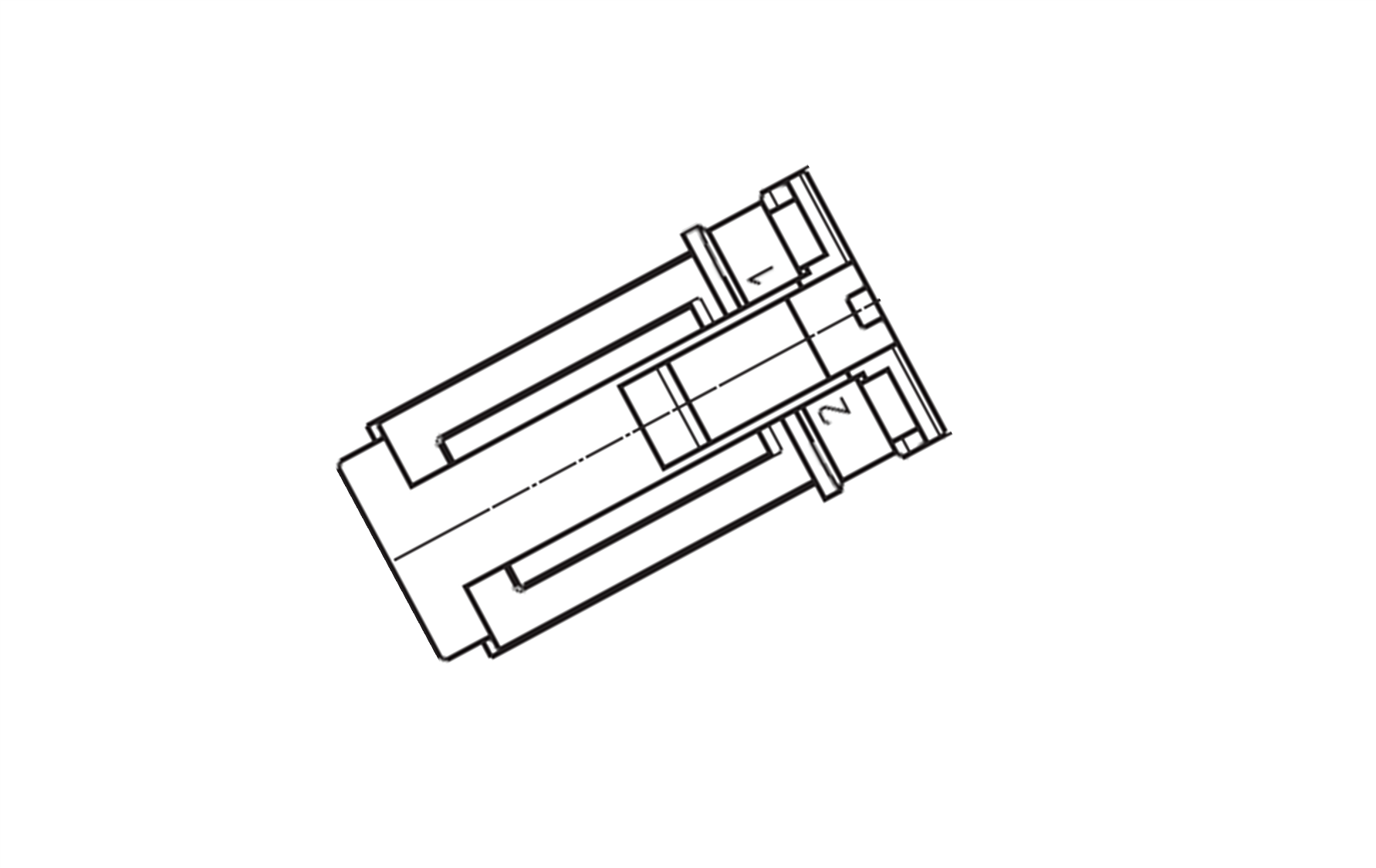

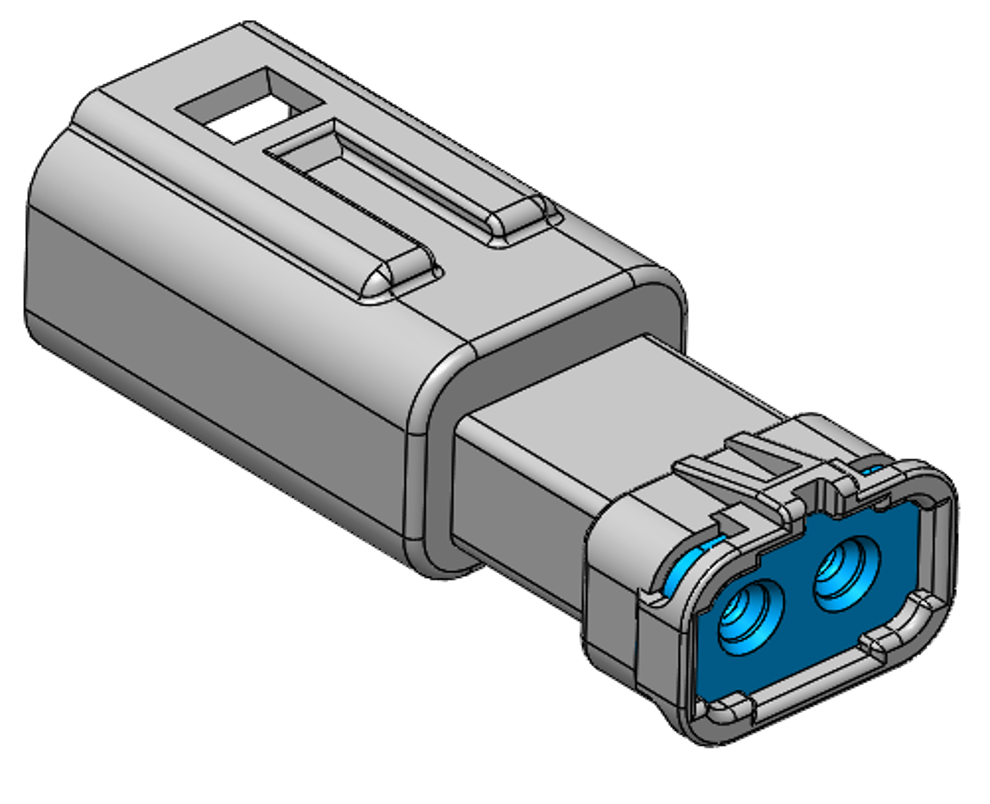

| CE01A6-0()B0-0* |  |
2,3 ＊=4:2Pin Only |

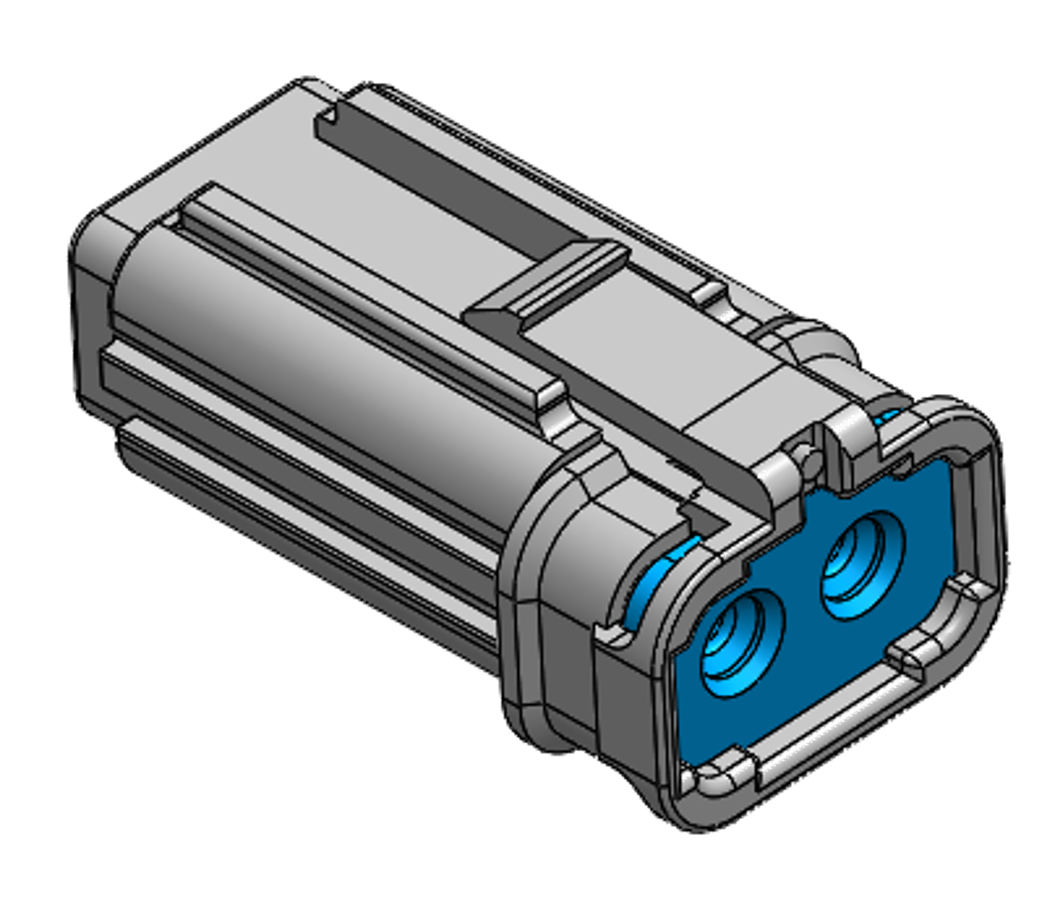

4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.70～Φ2.30 ＊=2:Φ2.20～Φ2.80 ＊=3:Φ2.70～Φ3.20 *=4:Φ1.40～Φ1.80 |
DL0009_MCICE01_BI_CL.pdf | |
| CE01A5-0()B0-0* |  |
2,3 ＊=4:2Pin Only |

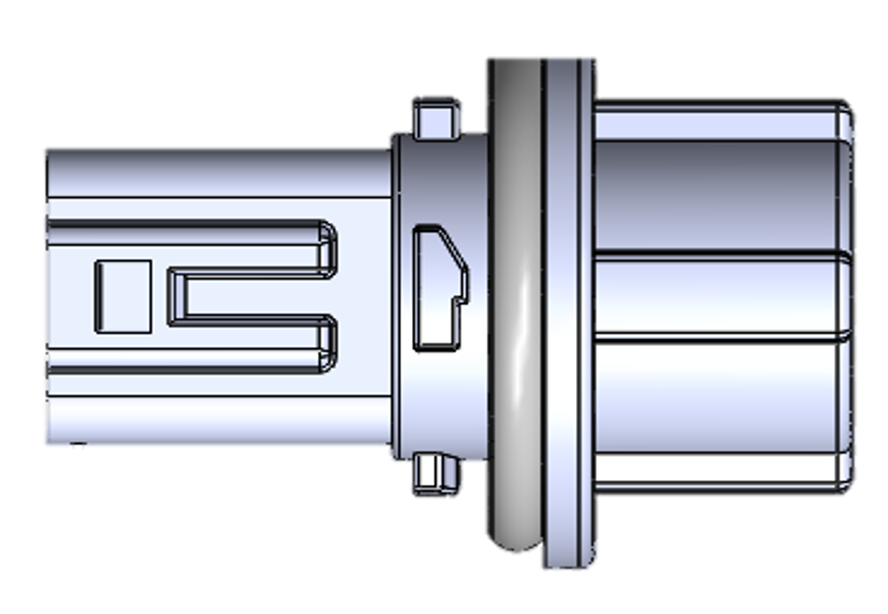

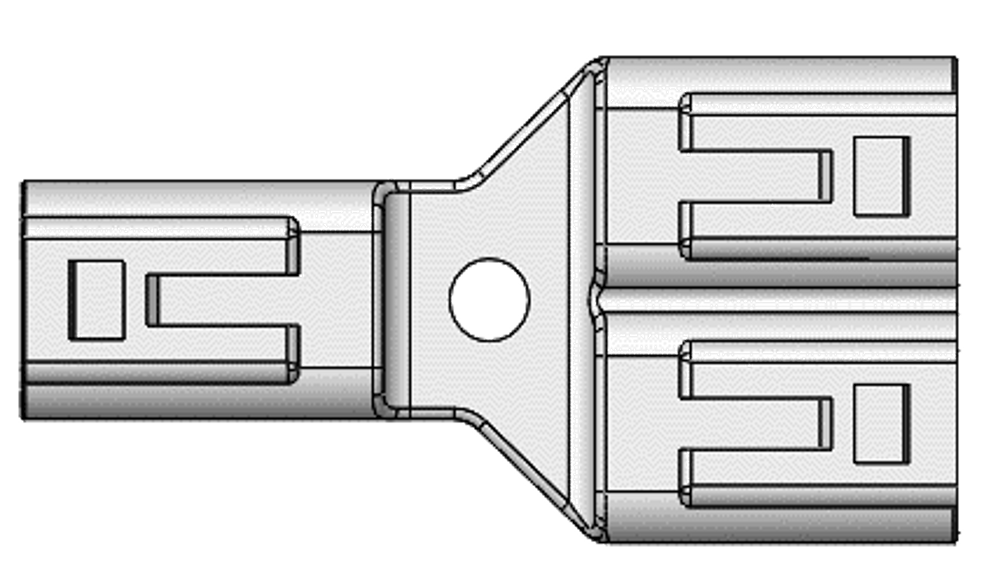

4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.70～Φ2.30 ＊=2:Φ2.20～Φ2.80 ＊=3:Φ2.70～Φ3.20 *=4:Φ1.40～Φ1.80 |
DL0009_MCICE01_BI_CL.pdf | |
| CE01A5-03B2 |  |
3 | 4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0011_MCICE01_BI_CL.pdf | ||
| CE01A5-02NA |  |
2 | 4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0010_MCICE01_BI_CL.pdf | ||

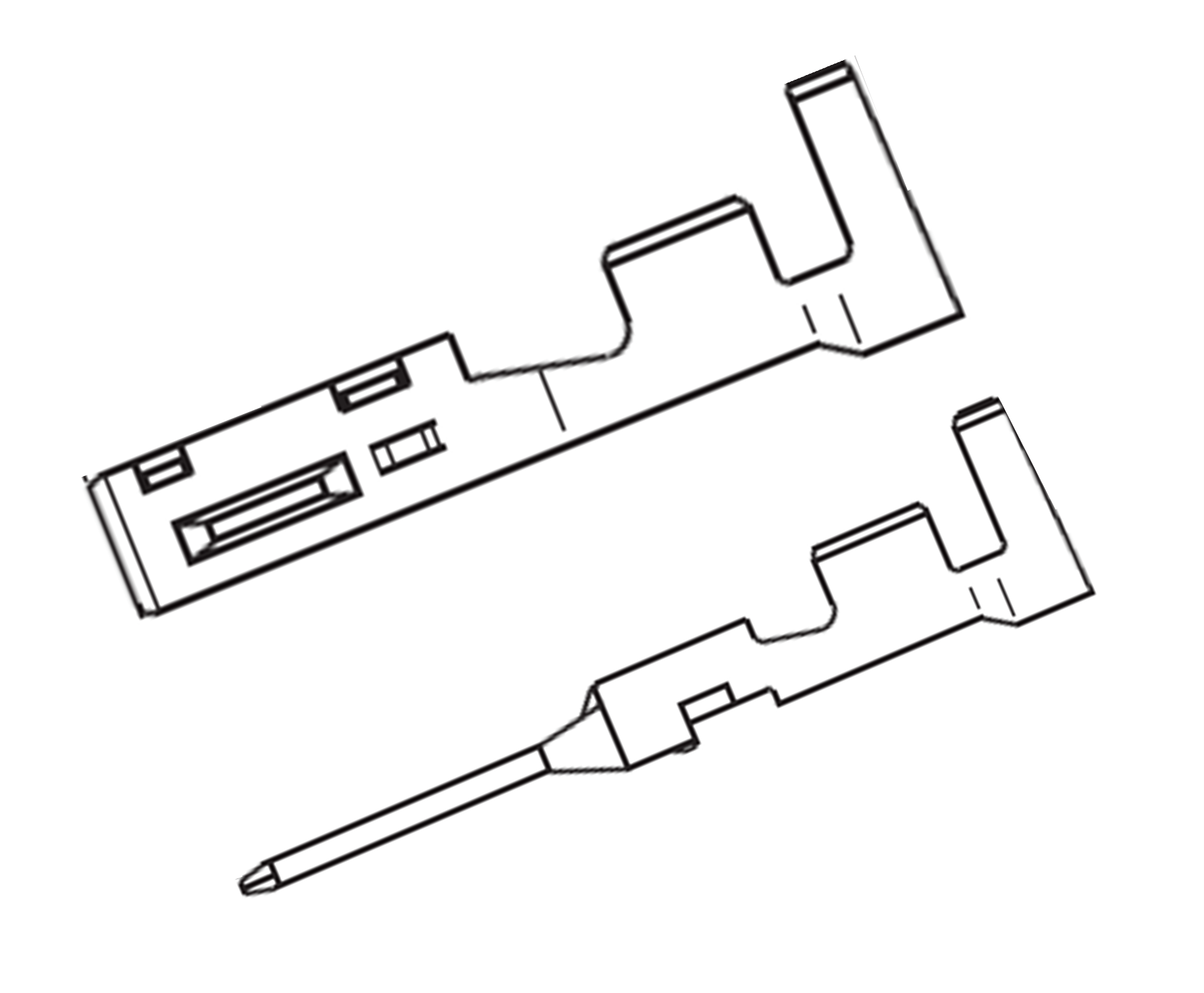

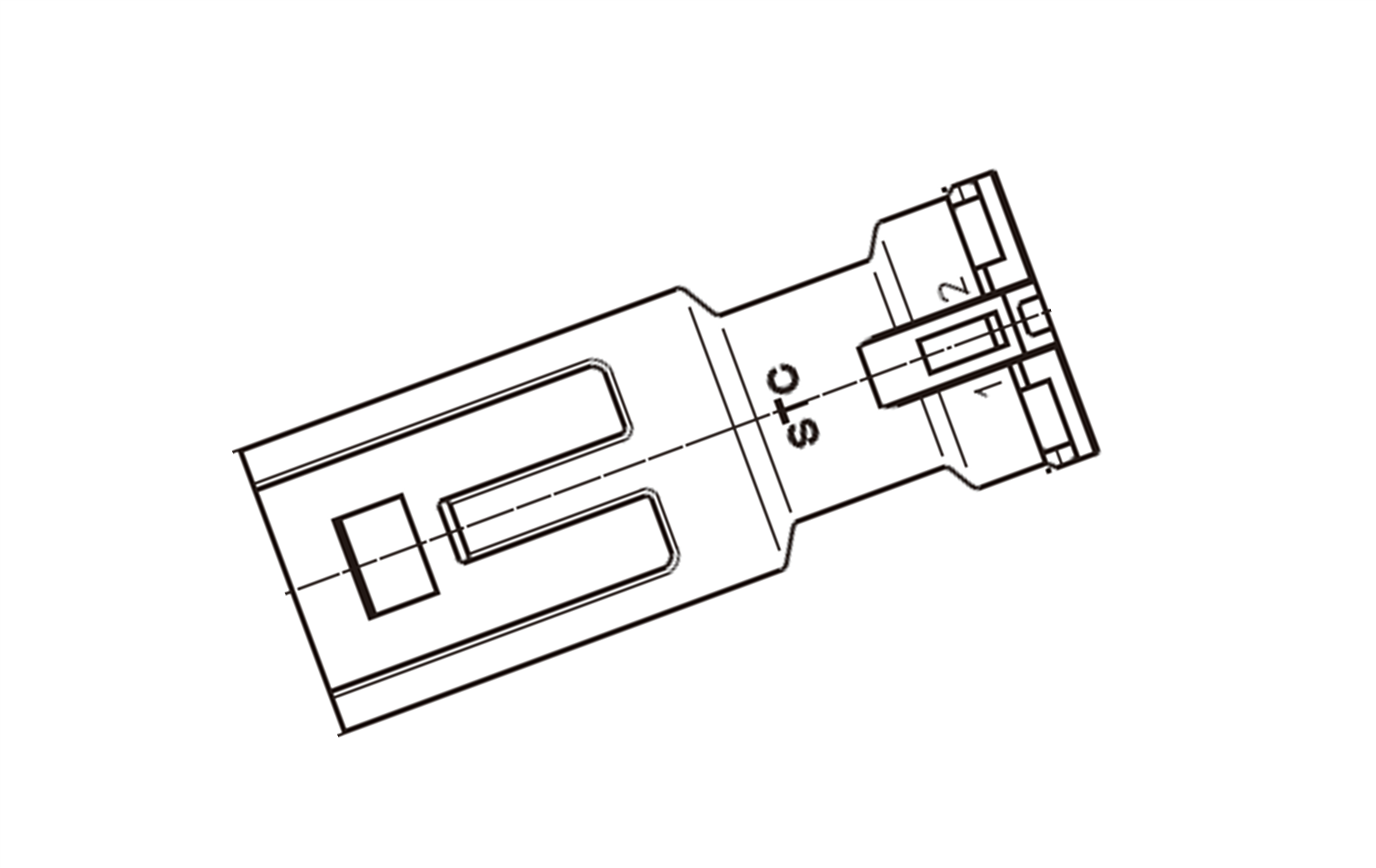

| CE01C*-010A |  |
Crimping | -40 | 105 | Φ2.60 MAX | AWG#22～18 | DL0009_MCICE01_BI_CL.pdf | |||||
| CE01C*-020A |  |
Crimping | -40 | 105 | Φ3.20 MAX | AWG#18～16 | DL0009_MCICE01_BI_CL.pdf | |||||
| CE01H6-02#1 |  |
2 | Waterproofing CAP | -40 | 105 | DL0009_MCICE01_BI_CL.pdf | ||||||
| CE01A5-02#1 |  |
2 | Waterproofing CAP | -40 | 105 | DL0009_MCICE01_BI_CL.pdf | ||||||
| CE01E0-01N1 |  |
Dummy Plug | -40 | 105 | DL0009_MCICE01_BI_CL.pdf |
