The CE01 series is a 4.5mm pitch waterproof wire-to-wire connector. Alongside the standard wire-to-wire type (2 and 3 positions), the lineup includes a branch type (2 positions) and a panel-mount type (3 positions). It provides wiring and connection solutions tailored to diverse device specifications and applications.
【Features】
■ Achieves a maximum rated current of 9A (*depending on applied wires/conditions) in a space-saving design by adopting high-conductivity materials for the terminals
■ Delivers high IP67-equivalent waterproof performance via a simple structure where crimp terminals are inserted into the housing
■ Improves assembly workability and reduces insertion/extraction force through a structure incorporating a latch lock and housing seal
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).

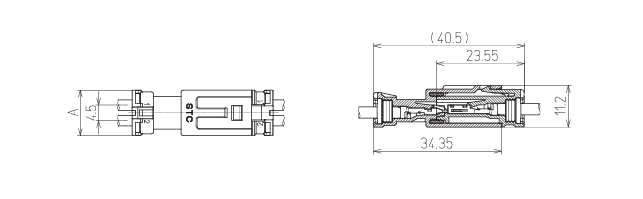

Outline

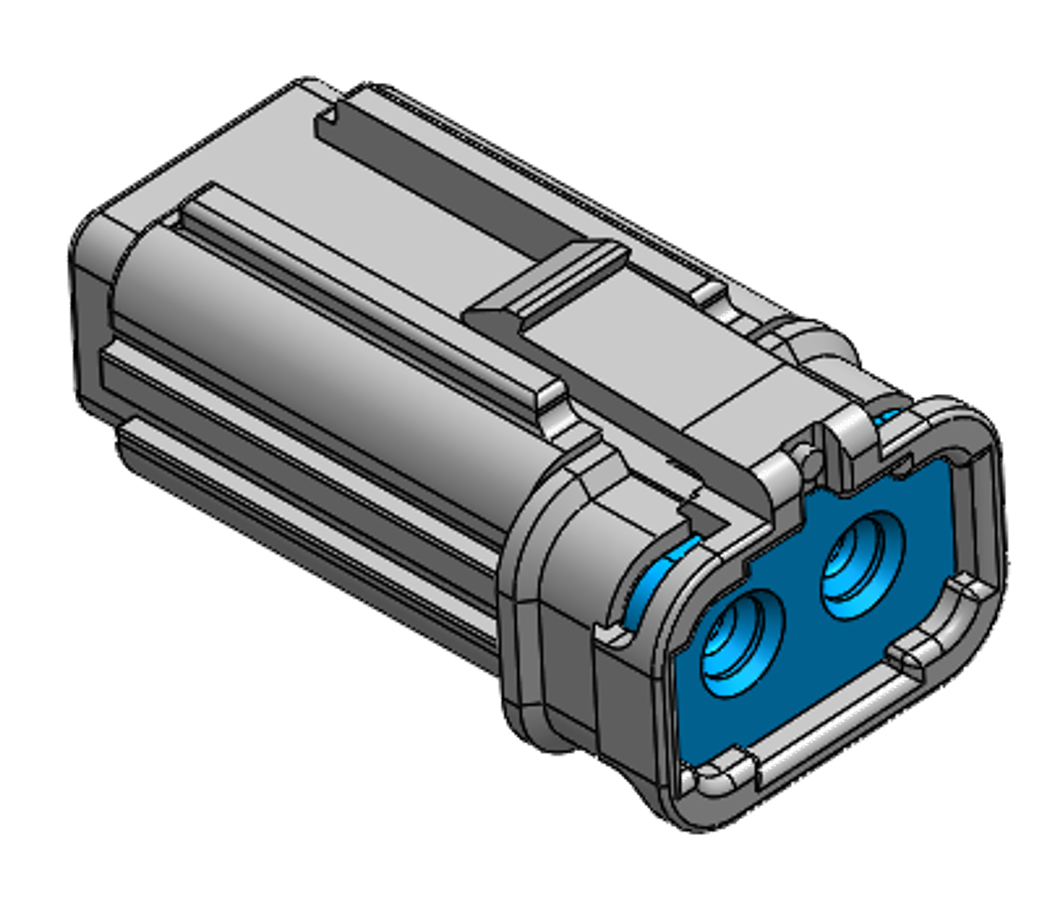

・This product is a female housing for the CE01 series (terminals not included).
・Mates with in-line, panel-mount, or branching male housing.
・In the part number, ""()"" indicates the number of pins and ""*"" indicates the applicable cable O.D.
-
-
Parts No. CE01A6-0()B0-0* Pin Count 2,3
＊=4:2Pin OnlyPich
[mm]4.50 Waterproof Grade IP67 Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]9.00 MAX Dielectric Withstanding
Voltage1,700V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]＊=1:Φ1.70～Φ2.30
＊=2:Φ2.20～Φ2.80
＊=3:Φ2.70～Φ3.20
*=4:Φ1.40～Φ1.80
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
