CJ01 Series | High Current 5.80mm Pitch Waterproof Connector

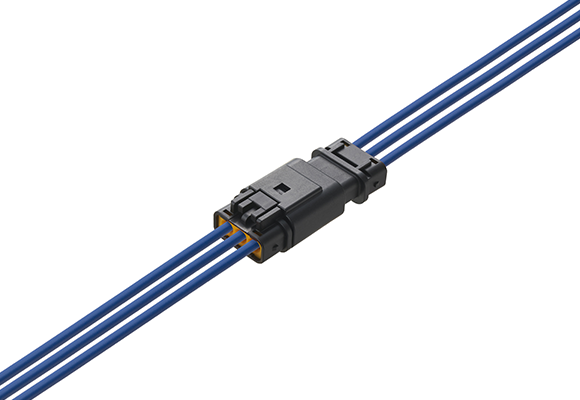

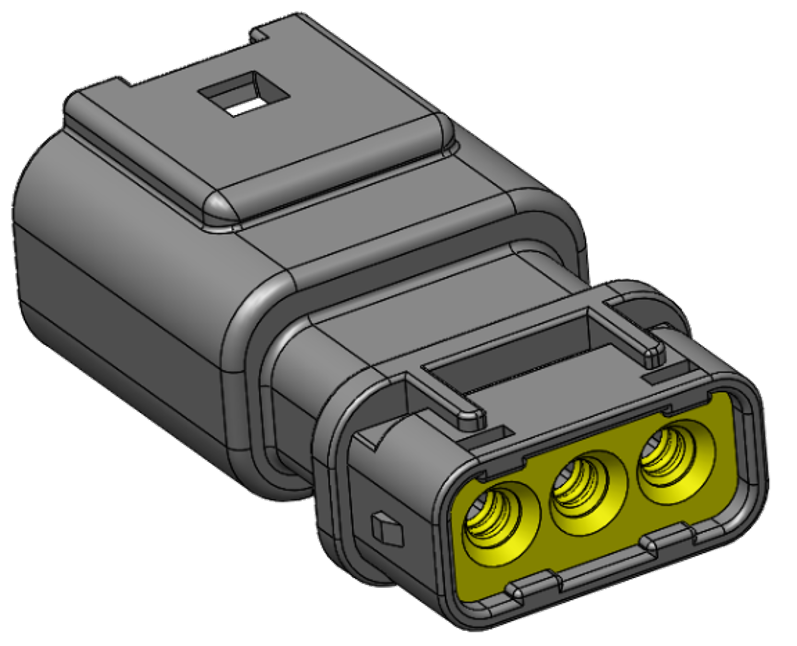

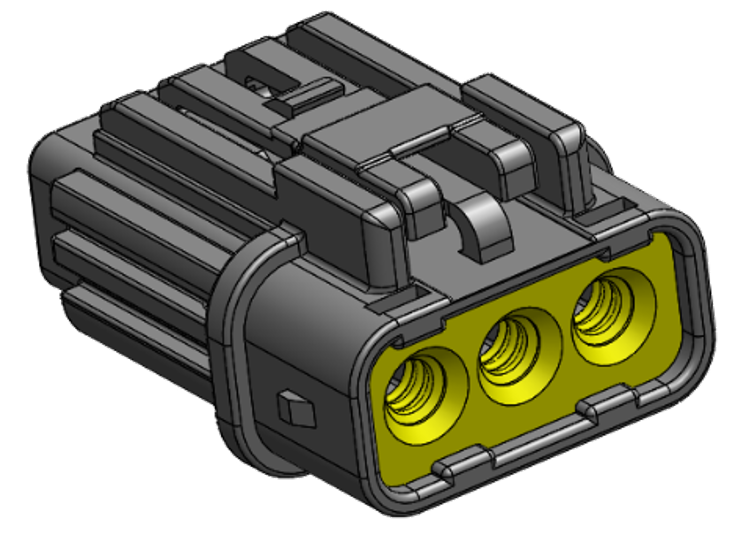

The CJ01 series is a 3-position waterproof wire-to-wire connector featuring a compact 5.8mm pitch design. By adopting highly conductive terminal materials, it achieves high-current compatibility with a rated current of 30A despite its small size. It is suitable for wiring connections in industrial equipment and automotive applications where space-saving and high power transmission are required.

【Features】
■ Supports a large rated current of 30A in a compact 5.8mm pitch design by adopting highly conductive terminal materials

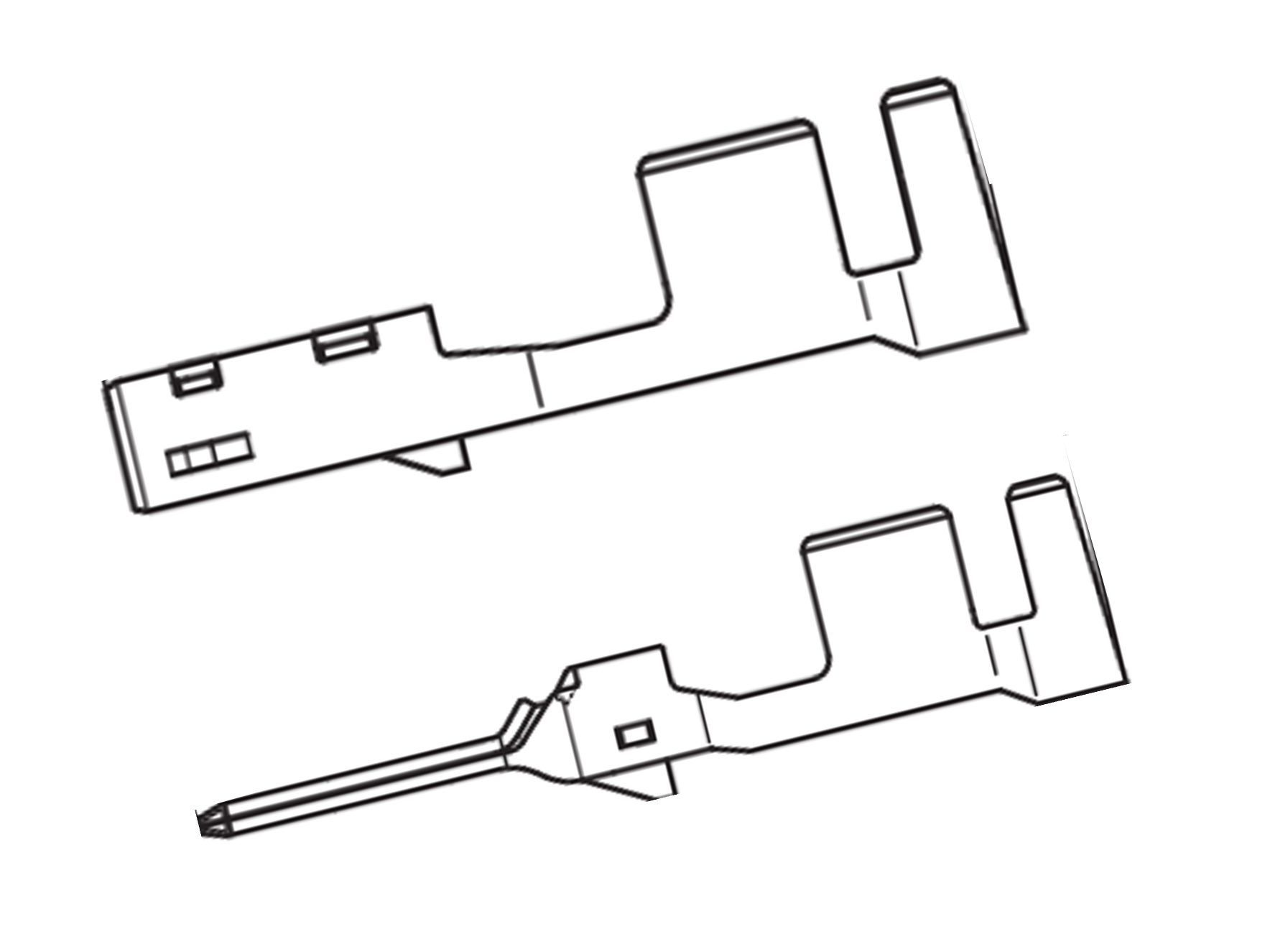

■ Provides excellent IP67-equivalent dustproof and waterproof performance with an assembly procedure of inserting crimp terminals into the housing
■ Reduces the number of parts and streamlines the assembly process by ensuring high terminal retention force with a retainer-less structure
■ Maintains high connection reliability and reduces the risk of incomplete mating with a dual-sided lock structure that provides a secure locking feel

* The 30 A rated current is a reference value based on specified wires and test conditions (40°C temp rise). Actual allowable current varies by wire, environment, and operating conditions.
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
