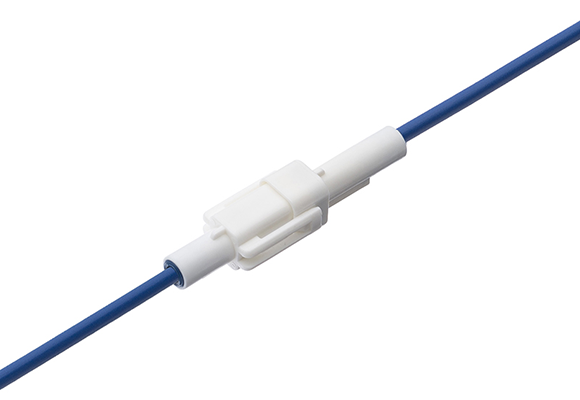

CL07C Series | Single-Pin Waterproof Connector

The CL07C series is a single-pin splash-proof connector suitable for installation in limited spaces. Compliant with JIS C 0920 Protection Grade 4 (equivalent to IPX4), it facilitates wiring connections in tight spaces exposed to water droplets and splashes.

【Features】
■ Supports internal wiring in equipment with limited installation space and high-current transmission up to 12A with its compact single-position design

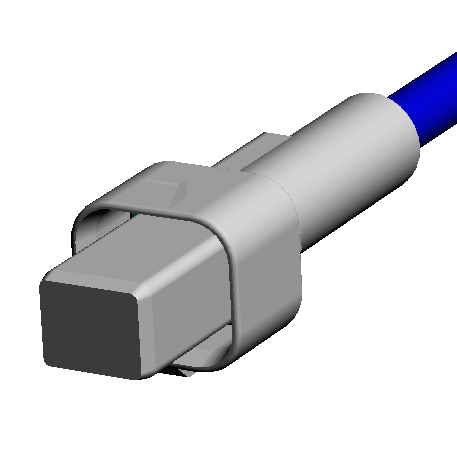

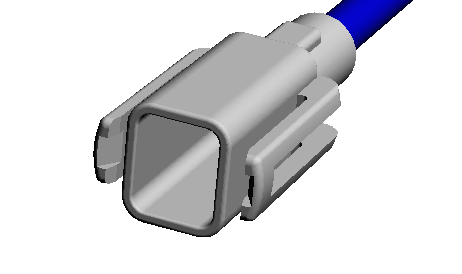

■ Maintains a stable connection status with a robust and compact housing lock mechanism that is not easily unintentionally released
■ Complies with JIS C 0920 Protection Grade 4 (IPX4 equivalent), protecting the connection part from splashing water from any direction

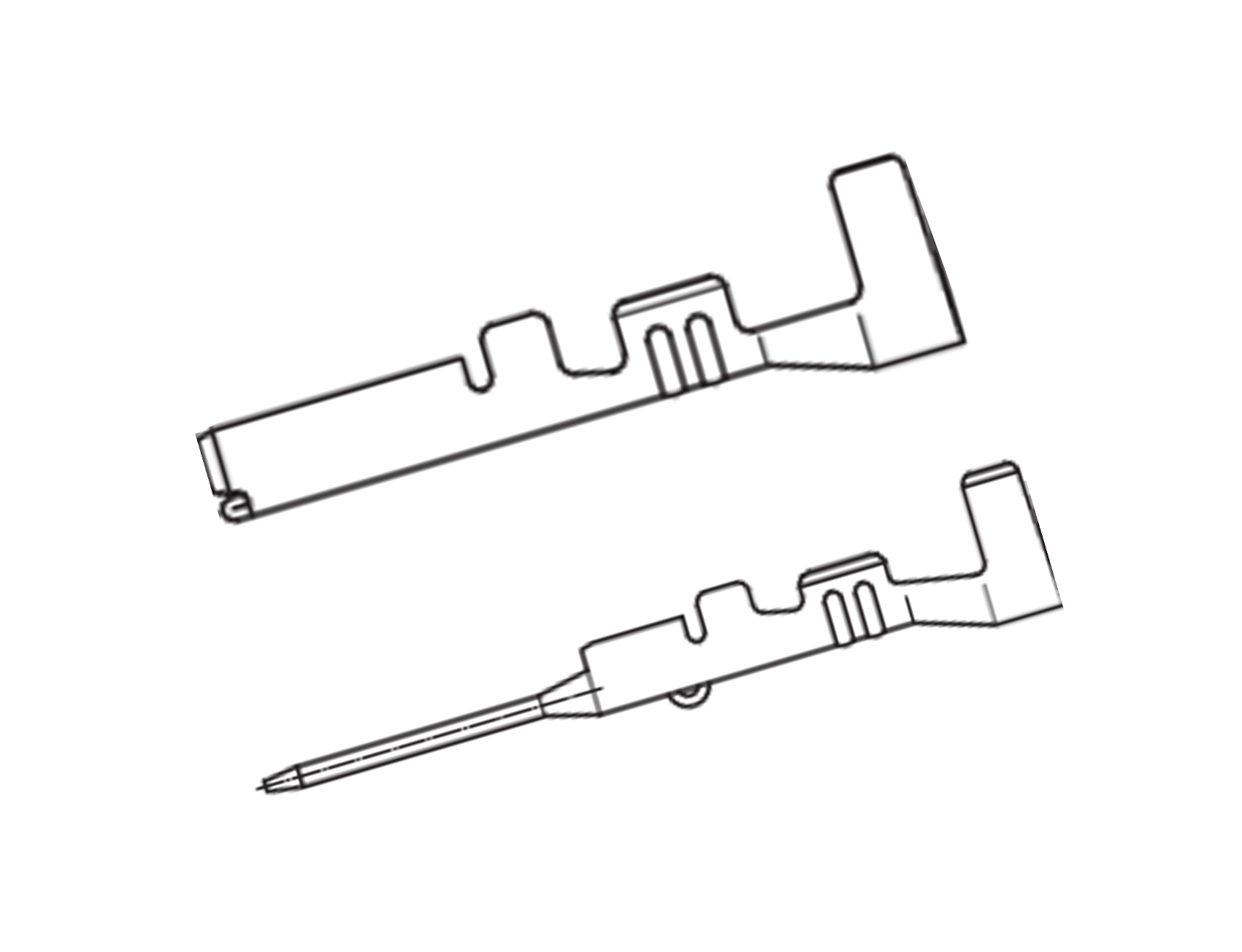

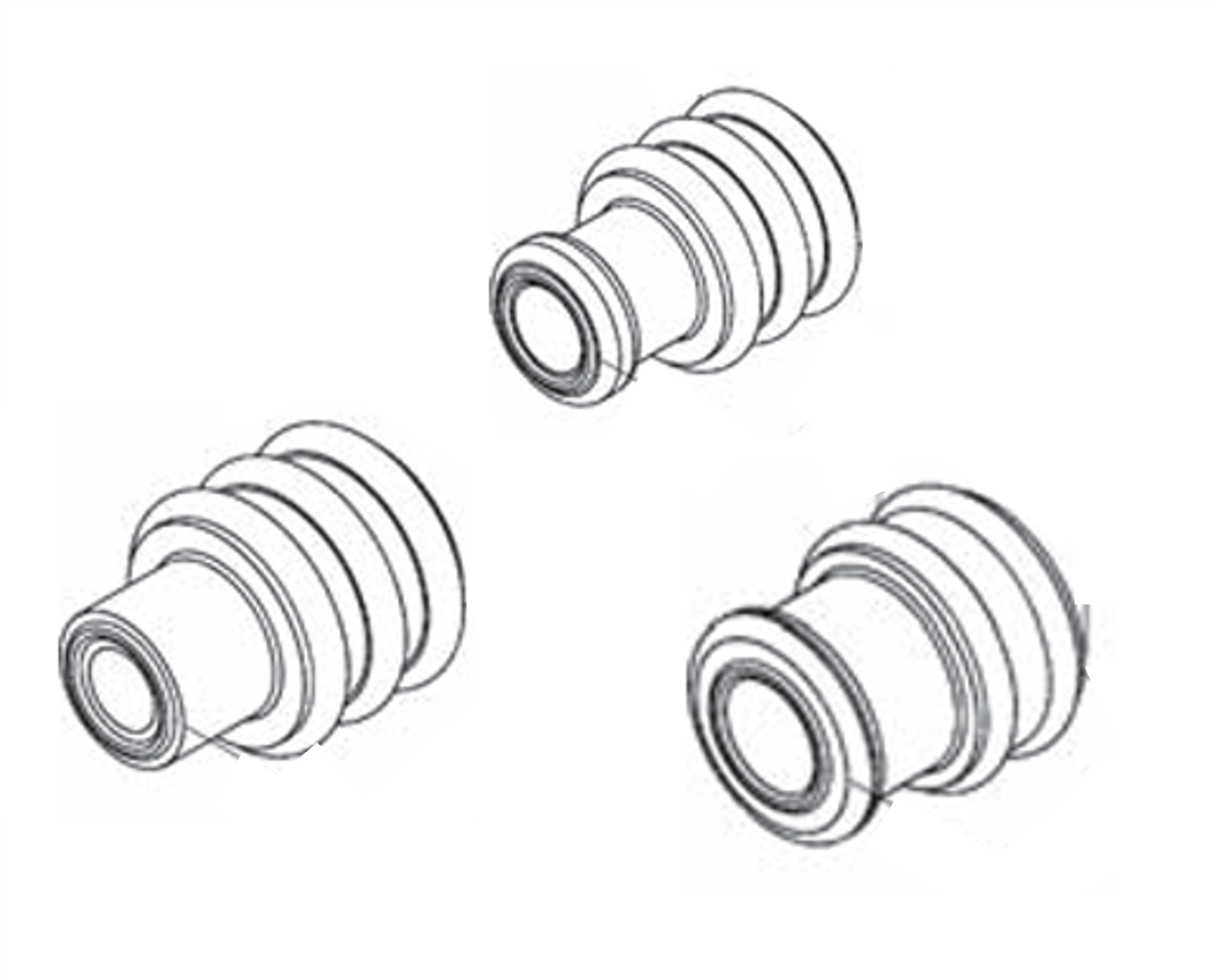

■ Allows terminals, wire seals, and waterproof plugs to be shared across our CL07 series

* The 12 A rated current is a reference value based on specified wires and conditions. Actual allowable current varies by wire size, ambient temperature, and operating conditions, so prior evaluation is recommended.
* Complies with JIS C 0920 IPX4 (splash-proof). Avoid use in environments subject to continuous submersion or high-pressure water streams.
* Splash-proof performance requires specified wires, dedicated crimp tools, and proper assembly and mating.
