The CL07C series is a single-pin splash-proof connector suitable for installation in limited spaces. Compliant with JIS C 0920 Protection Grade 4 (equivalent to IPX4), it facilitates wiring connections in tight spaces exposed to water droplets and splashes.
【Features】
■ Supports internal wiring in equipment with limited installation space and high-current transmission up to 12A with its compact single-position design
■ Maintains a stable connection status with a robust and compact housing lock mechanism that is not easily unintentionally released
■ Complies with JIS C 0920 Protection Grade 4 (IPX4 equivalent), protecting the connection part from splashing water from any direction
■ Allows terminals, wire seals, and waterproof plugs to be shared across our CL07 series
* The 12 A rated current is a reference value based on specified wires and conditions. Actual allowable current varies by wire size, ambient temperature, and operating conditions, so prior evaluation is recommended.
* Complies with JIS C 0920 IPX4 (splash-proof). Avoid use in environments subject to continuous submersion or high-pressure water streams.
* Splash-proof performance requires specified wires, dedicated crimp tools, and proper assembly and mating.
Outline

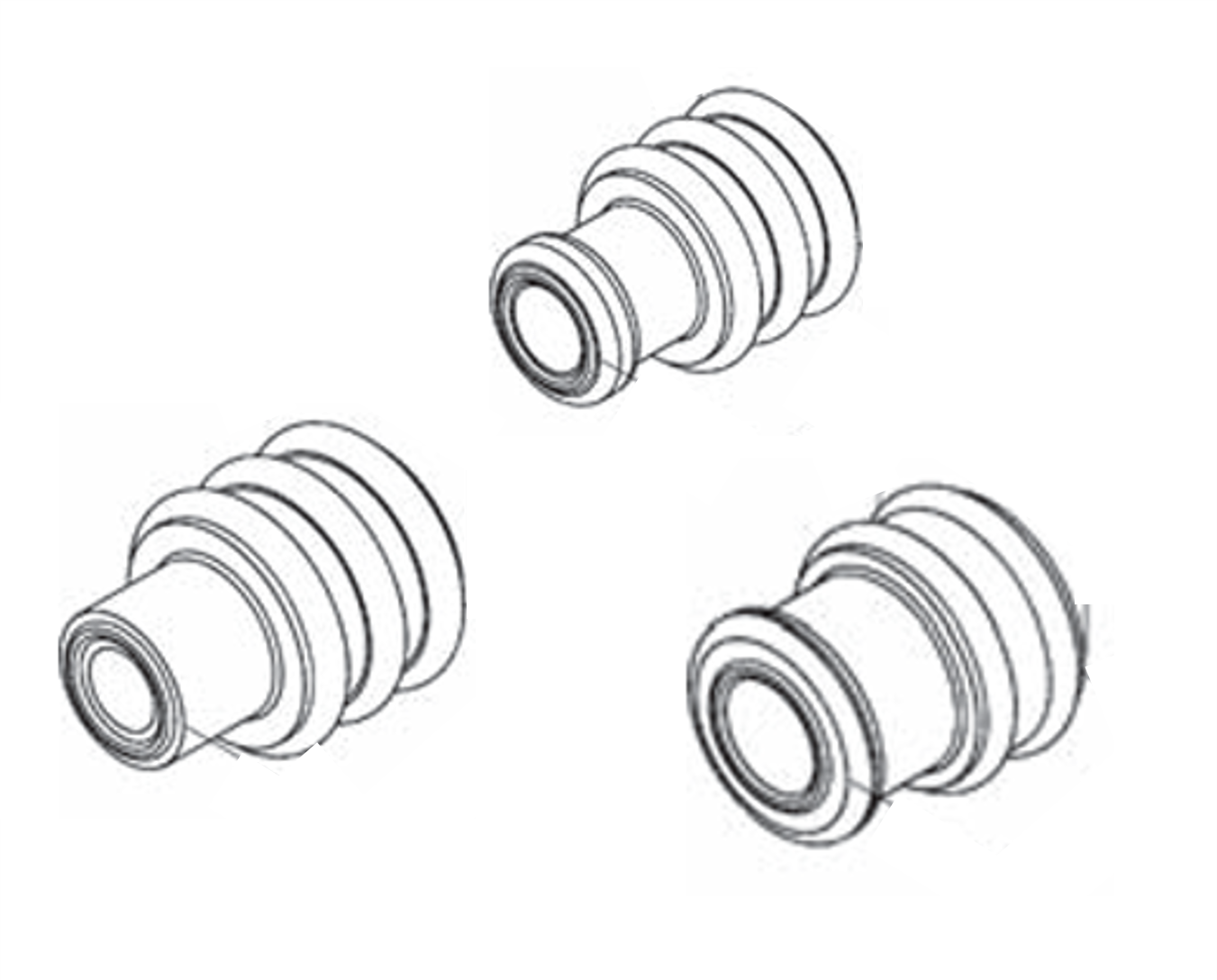

・This product is a wire seal for the CL07C series.
・Made of silicone rubber, it is available in sizes depending on applicable cable O.D. (Φ1.70 to 3.10), color-coded by seal color (black, blue, reddish brown).
・UL-compliant wire seals are also available in addition to standard wire seals.
-
-
Parts No. CL07C Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog

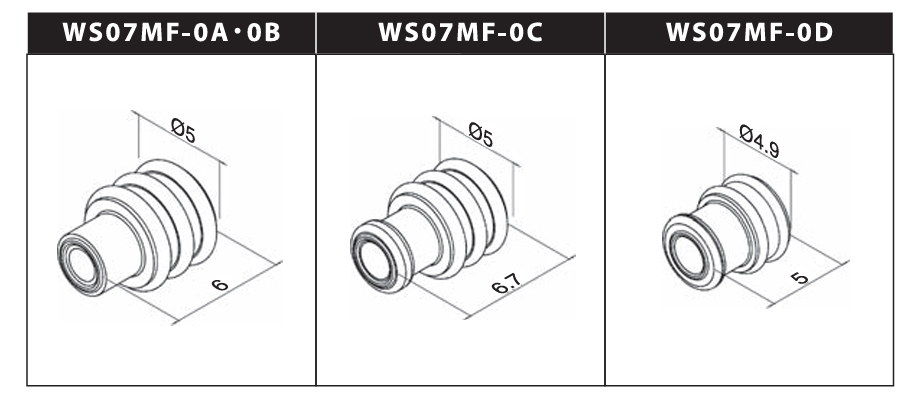

WS07MF-0A -40 105 Φ1.70～2.10 DL0014_MCICL07C_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0014_MCICL07C_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0014_MCICL07C_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0014_MCICL07C_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
