CB01 Series | 2.50mm Pitch Waterproof Connector

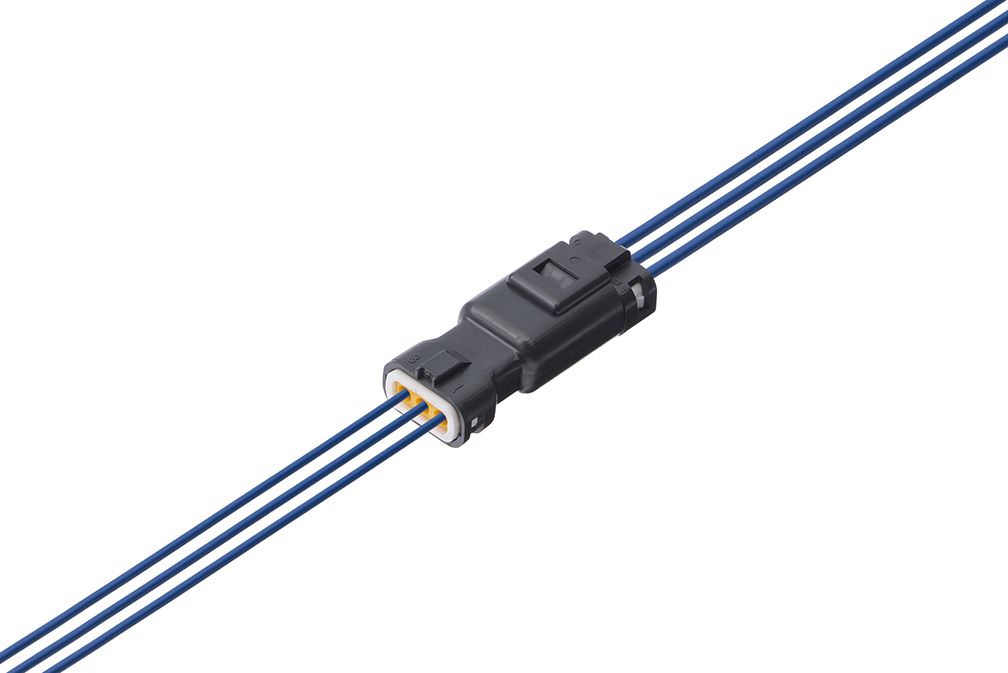

The CB01 series is a 2.5mm pitch IP67-compliant waterproof connector. In addition to the "compact wire-to-wire/wire-to-board" types, the lineup includes a "branch type" capable of T-shaped wiring branches, supporting waterproof connections within and between various devices.
【Features】
■ Achieves excellent workability by eliminating the need for simultaneous seal crimping, thanks to the built-in seal structure (for wire-to-wire/wire-to-board types)

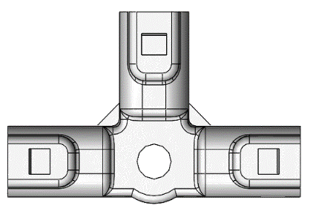

■ Offers a "branch type" supporting power and signal circuit branching, featuring a structure that allows panel mounting with M4 screws
■ Prevents incomplete mating and reduces workloads with a low insertion/extraction force design and a latch lock system that provides a clear tactile response
* IP67 rating is based on specified test conditions. Full performance requires applicable wire sizes and proper assembly (terminal insertion/mating).
CB01 Series | 2.50mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

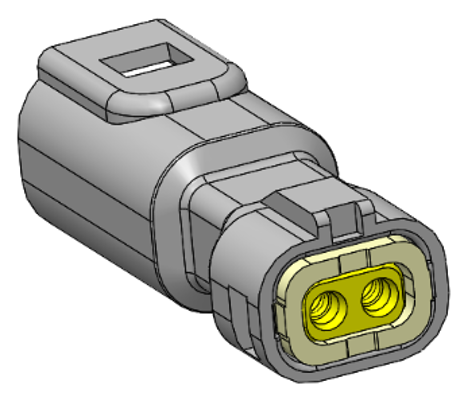

| CB01A6-0()B0-0* |  |
2,3,5 | 2.50 | IP67 | Crimping | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.30 ＊=2:Φ1.30～Φ1.70 |
DL0006_MCICB01_BI_CL.pdf | |

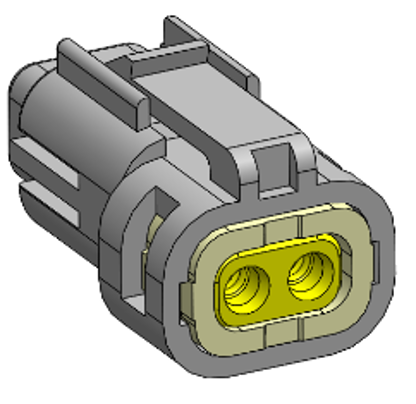

| CB01A5-0()B0-0* |  |
2,3,5 | 2.50 | IP67 | Crimping | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.30 ＊=2:Φ1.30～Φ1.70 |
DL0006_MCICB01_BI_CL.pdf | |
| CB01A5-02BA |  |
2 | 2.50 | IP67 | Crimping | 5.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0007_MCICB01_BI_CL.pdf | ||

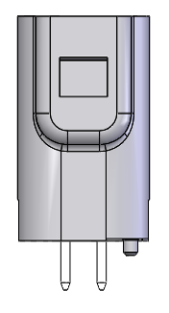

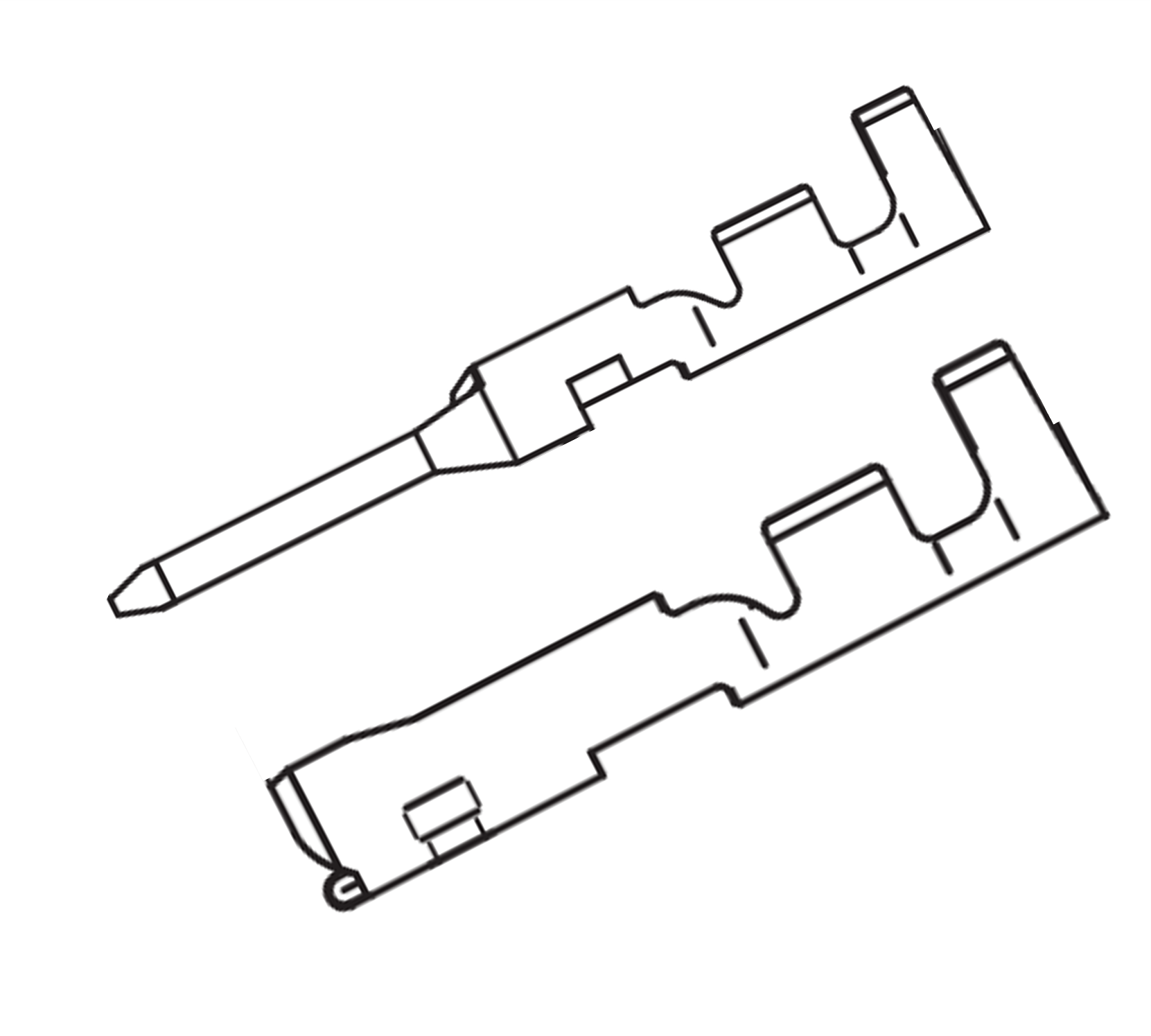

| CB01A1-0()BA |  |
2,3,5 | 2.50 | IP67 | DIP | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0006_MCICB01_BI_CL.pdf | ||
| CB01C*-010A |  |
Crimping | -40 | 105 | Φ1.60 MAX | AWG#28～22 | DL0006_MCICB01_BI_CL.pdf | |||||
| CB01C*-020A |  |
Crimping | -40 | 105 | Φ1.70 MAX | AWG#22～20 | DL0006_MCICB01_BI_CL.pdf |
