The CB01 series is a 2.5mm pitch IP67-compliant waterproof connector. In addition to the "compact wire-to-wire/wire-to-board" types, the lineup includes a "branch type" capable of T-shaped wiring branches, supporting waterproof connections within and between various devices.
【Features】
■ Achieves excellent workability by eliminating the need for simultaneous seal crimping, thanks to the built-in seal structure (for wire-to-wire/wire-to-board types)
■ Offers a "branch type" supporting power and signal circuit branching, featuring a structure that allows panel mounting with M4 screws
■ Prevents incomplete mating and reduces workloads with a low insertion/extraction force design and a latch lock system that provides a clear tactile response
* IP67 rating is based on specified test conditions. Full performance requires applicable wire sizes and proper assembly (terminal insertion/mating).
Outline

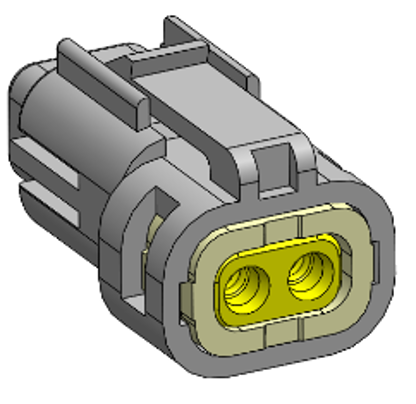

・This product is a female housing for the CB01 series (terminals not included).

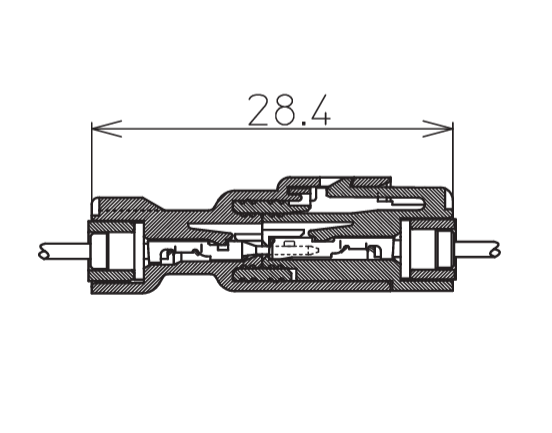

・Mates with in-line male housing, or board-to-wire/branching pin blocks.
・In the part number, ""()"" indicates the number of pins and ""*"" indicates the applicable cable O.D.
-
-
Parts No. CB01A6-0()B0-0* Pin Count 2,3,5 Pich
[mm]2.50 Waterproof Grade IP67 Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]3.00 MAX Dielectric Withstanding
Voltage1,000V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]＊=1:Φ1.00～Φ1.30
＊=2:Φ1.30～Φ1.70
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
