Overview
3 Phase outer rotor type DC Brushless Motor
Bearing : Oil retaining bearing
Connection : Connector or FFC or FPC
Circuit : Can respond to the mounting of the drive IC (outside of the rotor area)
Interface : Coil terminal
Input & Output of Hall sensor or Hall IC
Shaft : It is possible to respond to the change of length, the shape of D-cut, the addition of the gear, etc..
Specification
| Outer Diameter [mm] |
No load speed [r/min] |
Starting torque [mN・m] |
Maximum output power [W] |
Starting current [mA] |
Starting torquey [%] |
Speed at maximal efficiency [r/min] |
Speed at max output power [r/min] |
Life at 20 deg.C [hour] |
|---|---|---|---|---|---|---|---|---|
| 24.8 | 3100 | 4.6 | 0.38(at 2.2mN·m) | 175 | 38(at 1.2mN·m) | 2300 | 1500 | 5000 |
* Major characteristic parameters at 12V.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

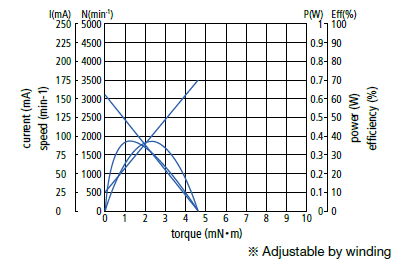

Property diagram

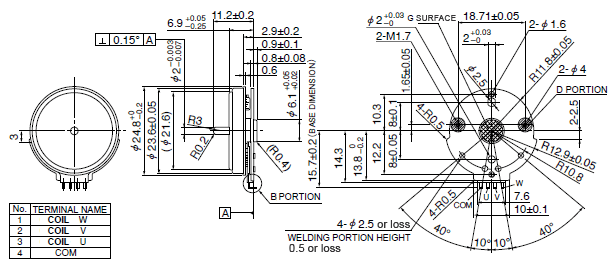

Overall View
