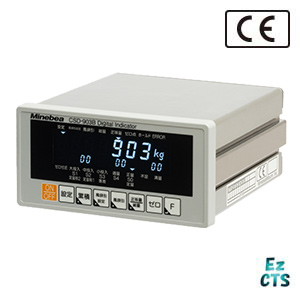

Features
・Main display uses VATN LCD (display color: white, backlit) with character height of 11.55mm.
・Various sub-displays with a total of 18 digits and 16 status displays actively express measurement status
・In addition to the control of feed-in/out control, compensated feed-in, automatic drop-off compensation, automatic accumulation function, etc. can also be controlled.
・2-wire serial interface, RS-485 (Modbus compatible) as standard
・User-definable F key for simple handling of 9 different functions with one-key actions
・Compact size with a depth of 136.5 mm
・Easy to write, read, save, and print configuration data via PC application, ideal as a maintenance tool
・CE Mark conformity (conformity directive EN61326-1:2021), RoHS compliant, protection class: IP65
・JIS B 7611-2: 2015 Annex C (environmental test level H) compliant
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±0.5VDC within 180 mA with remote sensing function |
| Input sensitivity | 0.2 μV/d or more (d = minimum scale) |
| Input range | -3.1 mV/V ~ 3.1 mV/V |
| Zero adjustment range | -2.5 mV/V ~ 2.5 mV/V |
| Non-linearity | 0.01 %F.S. |
| Temperature coefficient | Zero balance ±0.2 μV/℃ (When the calibration is set at 0.2 μV/d or more for input sensitivity.),Sensitivity ±0.001 5 %F.S./℃ (When the calibration is set at 0.2 μV/d or more for input sensitivity.) |
| Noise in input signal | ±0.2 μVP-P or less (At the default setting for analog filter, digital filter, stabilization filter and A/D sampling.) |
| Analog filter | Select from 2,4,6,8,10Hz（Analog filter, digital filter, and stabilizing filter at default settings） |
| A/D sampling speed | 200 times/s (Changeable to 20 times/s) |
| A/D internal resolution | 24 bit |
| Main display | Display range ：-999 999 ~ 999 999 Display incliment ：1 (changeable to 2, 5, 10, 20 or 50) Display unit ：VATN LCD (display color white, backlit) with 7 digits and 11.55 mm character height Over display ：'-OL' at minus over, 'OL' at plus over Over display of A/D value ：'-OVF' at minus over, 'OVF' at plus over |
| Sub display | Display range ："Total accumulation value -9 999 999 999 ~ 9 999 999 999,Accumulation times 0 ~ 999 999 " Display unit ：VATN LCD (display color white, backlit) with 18 digits and 5 mm character height Display item ："changeable to no display,Issue/Cumulative Count/Cumulative Value (8 digits), Issue/Cumulative Count/Latest Cumulative Data, Issue / Latest accumulated data / Cumulative value (8 digits), Issue / Latest accumulated data / Quantitative,Issue/accumulated count/quantity, Issue/quantity/accumulated value (8 digits), Issue/near zero/full,Issue / Over/Under, Issue / Quantitative / Falling, Issue / S1/S2 , Issue / S1/S3 ,Issue/S1/S4 , Issue/S2/S3 , Issue/S2/S4 , Issue/S3/S4 , Issue/Quantitative,Issue/Over/Under, Issue/Cumulative Count, Issue/Cumulative Value (10 digits), Brand / Latest accumulated data * it displays weighing value + unit during the set of function. |
| Status display | STABLE, PRE.TARE, TARE, GROSS, NET, ZERO, HOLD, ERROR, Z-BAND,OK/S0, F.FLOW/S1(, M.FLOW/S2, D.FLOW/S3, OVER/S4, UNDER, FULL |
| Display times | 4 times/s (Changeable to 20 times/s) |
| Display of decimal point | Changeable to no display, 10¹, 10², 10³, 10⁴. |
| Display of unit | Changeable to no display, g, kg, t, N, kN, or lb. |
| External control input signal | 9 signals in the following can be arbitrarily selected. OFF, key operation either of [ON/OFF], [SET], [ACCUM./left arrow], [PRE-TARE/right arrow], [TARE/▲], [NET/GROSS/▼], [ZERO] or [F/enter]. zero clear, tare clear, flow start, DISCHARGE start, cancell former accumulation, clear accumulation, error reset, print command.Manual drop compensation, completion of forced weighing, completion of forced discharge, and clearing of all stocks accumulation *Above is pulse input, and effective once at a pulse width of 50 ms or more. Change of Flow/Weigh out (ON: Weigh-out, OFF: Flow), hold, emergency stop,Display of NET (ON: NET, OFF: GROSS),Issue No. 1, Issue No. 2, Issue No. 4 * Above is level input, and effective during short input of 50 ms or more. |
| External control output signal | 13 signals in the following can be arbitrarily selected. OFF, RUN, stable, during tare, gross display, net display, zero point, during hold, capacity exceeded error, weighing sequece error, zero band, OK(S0), big flow (S1), medium flow (S2), Dribble flow (S3), over (S4), under, full, during measurement, batch finish, discharge (for gate open), discharge finish (for gate) |
| Function of comparator | Set value -999 999 ~ 999 999 No. of set points: 4 points of S1, S2, S3 and S4 Set value of hysteresis data width: 0 to 99 digit Direction of hysteresis: Selectable from 'On delay' or 'Off delay' Conversion times of comparator: Changeable to 200 times/s or 20 times/s (Synchronous with the A/D sampling rate.) |
| 2-wires method serial interface | Baud rate : 600 bps Data bit length : 8 bit Parity bit : Odd number Stop bit : 1 bit Start bit : 1 bit Transmission data : Binary code, BCD ※Photocoupler isolated from internal circuits ※Common to external control inputs ※Attached connector compatible plug: MC1.5/6-ST-3.81 (manufactured by PHOENIX CONTACT) (Shared with RS-485 in section 2-8.) |
| Serial interface | Baud rate : Selectable from 1 200 bps, 2 400 bps, 4 800 bps, 9 600 bps, 19 200 bps or 38 400 bps. Data bit length : Selectable from 7 bit or 8 bit. Parity bit : Selectable from none, even or odd. Stop bit : Selectable from 1 bit or 2 bit Terminator : Selectable from CR+LF or CR. Communication method : Half duplex Synchronous method : Start-stop synchronous method Address : Select one from 0 to 31. Communication data : ASCII code Cable length : Approx. 1 km Connectable units : Up to 32 units ※When stream is selected in data transfer mode, one unit is connected Terminating resistance : Externally Data transmission mode : Selectable from command, modbus, stream, completion signal sync, cumulative signal sync, print signal sync |
| Various function | ・Zero tracking ・Stabilization filter ・stabilizing filter ・Calibration LOCK switch ・Digital linearize ・brand switching ・Accumulating function ・Preset tare ・Net Amount Offset ・net metric sign reversal |
| Operating temp. /humidity range |
Temperature -10 ℃~ 50 ℃, Humidity 85 % or less (Non condensing) |
| Power supply voltage | 100 VAC ~ 240 VAC (85 VAC ~ 264 VAC) 50/60 Hz |
| Power consumption | Approx. 7 VA (without any options, at 100 VAC) Approx. 15 VA or less (with options, at 100 VAC) |
| Outline dimensions (WxHxD) |
144 mm x 72 mm x 146.7mm (excludes protruding parts) |
| Weight | Approx. 1.0 kg (without options) |
| Protection code | IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed. |
Download
Instruction Manual
Specification
CAD
Software/Firmware
Options
- Current output
- Voltage output
- BCD output
- RS-232C interface
- RS-422/RS-485 interface
- CC-Link interface
